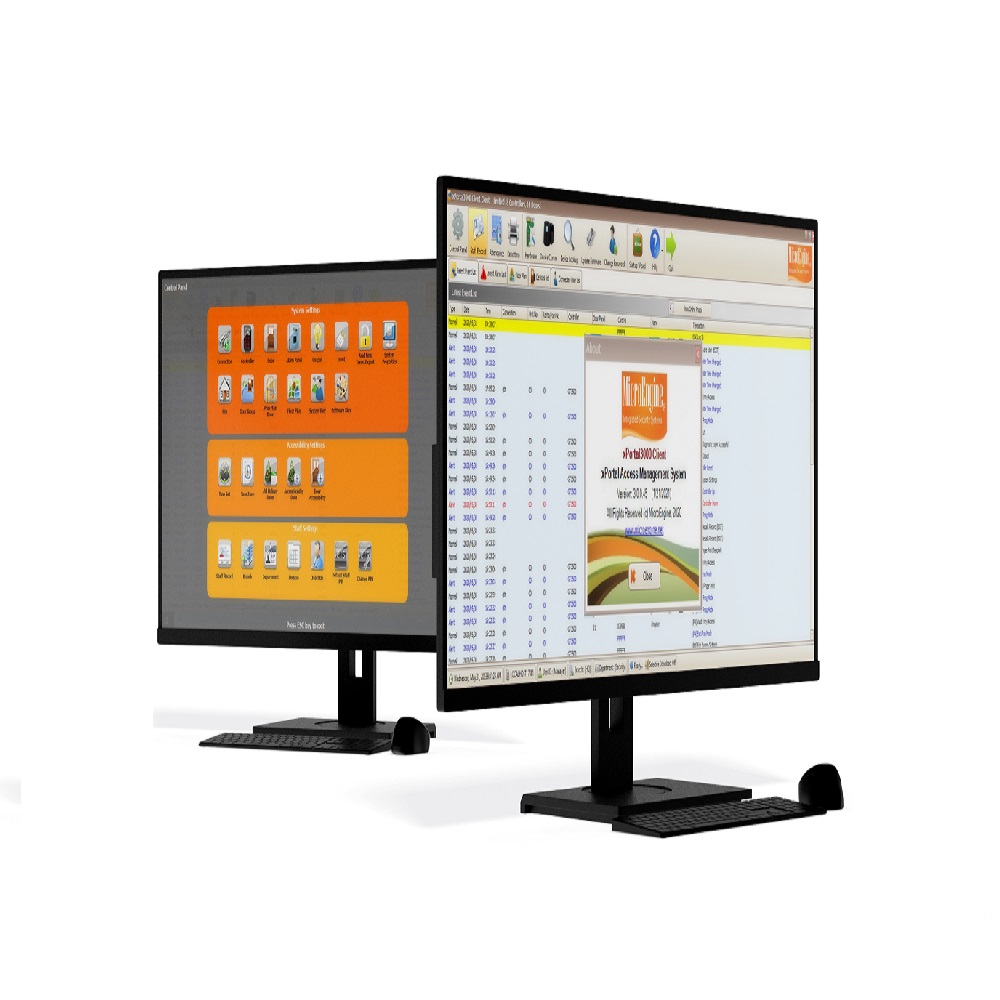

xPortal3000-Software

Hardware

• Proximity / Mifare Technology
• Reader Unit with LCD & Keypad (Colour LCD Keypad Available – Plato)
• Built-in Controller Function for Memory & Time Control
• Supports Exit Reader Unit
• Supports External I/O for Interfacing with CCTV / Sirens
• Keep Transactions Data even Power Fails
• Encrypted IP Controller
• Can Program Directly at the Reader Keypad (or from PC Software)
• Can be Linked to PC through LAN / Serial RS485

Software

• Supports Time Set & Time Zones
• Supports Transaction Recording
• Supports Transaction Memory Retention
• Can Program Directly at the PC Software (or the Reader Keypad)
• xPortal3000 Software with Access Management Automatic Data Collection, Time Attendance Function,
  Client-Server Version Available
• Server Runs as a Windows Service
• Multi-Language

Time Attendance

• Designate Specific Reader for Attendance
• Supports Attendance Door Group by Staff
• Configurable Export for Integration with Payroll System
• Configurable Shift Setting
• Supports Flexi Hour

Car Park

• Supports 1 IN and 1 OUT Reader
• Supports Car Park Vehicle Counting and Control
• Supports Car Park Full Sign Activation

Finger Print

• Reliable Optical Fingerprint Sensor

• Supports Up to 3500 Templates

• Can be Used Together with Card Access System with Same Software

• Multiple Operating Modes – Fingerprint + Card + Pin Codes

• features

• connectivity setup

• Ordering Information

• PC Requirements

• documentation

• faq

#image_428020243 { width: 100%; }

#image_843166983 { width: 100%; }

No	Item	Features
1.	XP-GT3500L	Proximity Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct TCP/IP LAN. 3,500 users, 20,000 event transactions.
2.	XP-GT3500LABX	MIFARE / ISO14443A / B Serial No Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct. 3,500 users, 20,000 event transactions TCP/IP LAN.
3.	XP-GTR1500L	Proximity Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users, 10,000 event transactions.
4.	XP-GTR1500LABX	MIFARE / ISO14443A / B Serial No Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users,10,000 event transactions.
5.	XP-GT10KL	Single Door Proximity Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates.
6.	XP-GT10KLABX	Single Door MIFARE Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates.
7.	XP-M1300i/IP	1 Door Network Controller. Max 2 RS485, In & Out Readers / 2 Weigand Reader Connection. 2 Relay Outputs & 6 Inputs. 30,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure.
8.	XP-M1000i-SE21	1 Door Network Controller. Max 2 RS485, In & Out Readers Connection. 1 Relay Output & 4 Inputs.10,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure.
9.	MCI-XPC3000/S	Standalone Software License Dongle xPortal3000
10.	MCI-XPC3000	xPortal3000 Client / Server Software License
11.	XP-M2300i/IP	2 Door Network Controller. Max 4 RS485, 2 In & 2 Out Readers / 2 Weigand Reader Connection. 4 Relay Outputs & 11 Inputs.30,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure.
12.	MPC-100	Proximity Card
13.	MPC-S1K	Mifare Standard 1KBit ISO Card
14.	PLATO-P80MS	Proximity Reader. 125 kHz EM. RS485. ABS Casing. MCMC Certified.
15.	PLATO-P80KLS	Proximity Reader with Keypad & LCD. 125 kHz EM. RS485. Smart Touch Sense Keypad. Graphic LCD Display. ABS Casing. MCMC Certified.
16.	PLATO-S82	MIFARE / CEPAS Contactless Reader. 13.56 MHz ISO14443A / B. RS485. ABS Casing. Small Size. MCMC Certified. (Replacement Model for PLATO-C80S).
17.	PLATO-M82	MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80MS).
18	PLATO-K82	MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Color Graphics LCD. Touch Sense Keypad. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80KLS).

No	Item	Features
1.	CPU (Recommended)	Intel Core i5-10400 or Higher
2.	RAM (Minimum)	4 GB (8 GB Recommended)
3.	OS	Microsoft Windows 7, 8, 10, 11 (Home & Starter Editions Not Supported) Microsoft Windows Server 2008, 2012, 2019, 2022
4.	Microsoft.Net Framework	Yes(Version 3.5)
5.	Ethernet & Serial Port	Yes
6.	USB Port	Optional – Required for USB Dongle, USB to RS232 serial port converter
7.	Hard Disk (Free Space)	50 GB

No	Documentation
1.	PDF-Icon Datasheet – xPortal3000

1. I have purchased xPortal3000 software and I need to…

• To install xPortal3000 for the first time, see article ID: AA-00285
• To migrate from previous database upon xPortal3000 installation, see article ID: AA-00287
• To skip the database migration and initialized new database upon the xPortal3000 installation, see article ID: AA-00286
• Basic new setup using wizard xPortal3000 for first time, see article ID: AA-00214

2. I have installed the xPortal3000 software, but how do I configure software feature

• To create new xPortal software User ID, see article ID: AA-00428
• To change the staff card PIN number, see article ID: AA-00369
• To set the verification mode to Card+Pin (High Security mode), see article ID: AA-00208
• To use the Restore Transaction Tool in xPortal3000 Server Configuration Manager, see article ID: AA-00289

3. Troubleshooting Guide

• Windows Service installation problem in Windows XP during xPortal3000 installation, see article ID: AA-00348
• Get error “Fail to check the database version.” upon starting up the service, see article ID: AA-00310
• Get “Unlisted User” after generating report, see article ID: AA-00284
• Unable to generate report due to missing transaction. Get “Error Adding Transaction”, see article ID: AA-00289
• Real-Time Export is not working properly (Not exporting/ stop exporting), see article ID: AA-00220
