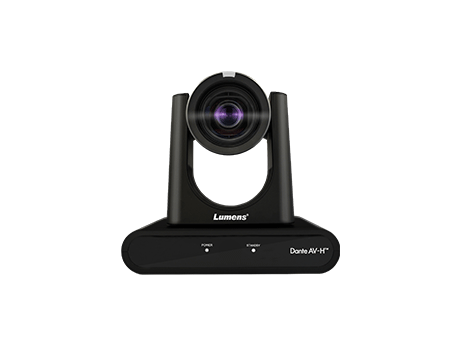

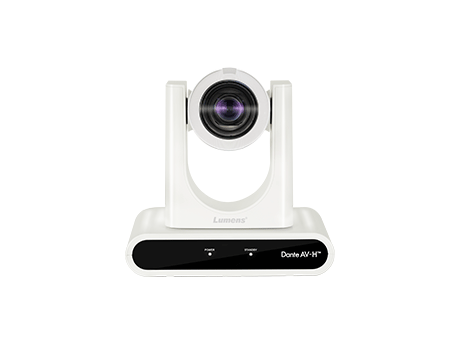

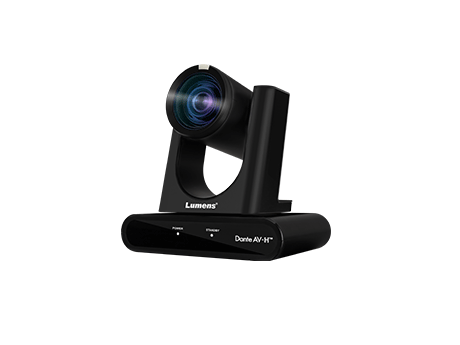

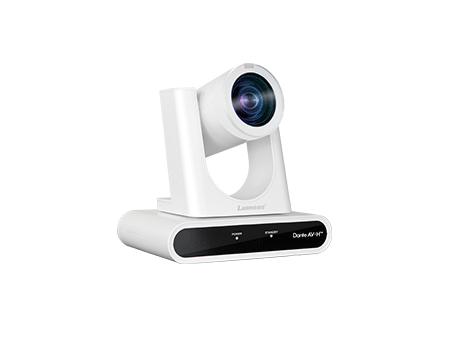

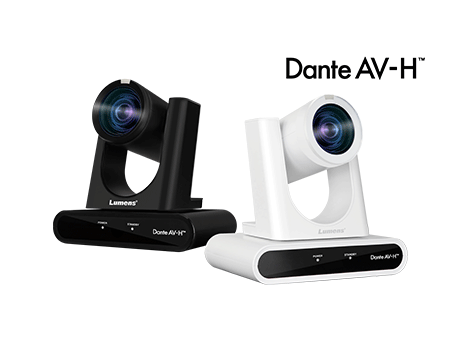

VC-TR60 Dante AV-H 4K Dante AV-H AI Auto-Tracking Camera
4K 60fps Dante AV-H, HDMI, Ethernet, 3G-SDI and USB output 12x Optical Zoom HFOV 81° AI-based Human Detection
Mô tả chi tiết
Dante AV-H
Dante AV-H provides easy-to-use discovery, connectivity and manageability while using reliable, low-latency H.264 codecs. The standard enables high-quality video output and integration with familiar Dante workflows.
Wide-Angle UltraHD
Featuring an 81° horizontal frame of view, VC-TR60 Dante AV-H can shoot as wide as a webcam. Its 12x optical zoom means that it can focus tight, with the 4K sensor picking out every detail.
Tracking and Framing Modes
VC-TR60 Dante AV-H features sophisticated auto-tracking and framing modes. Its intelligent facial recognition algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms, and studios.

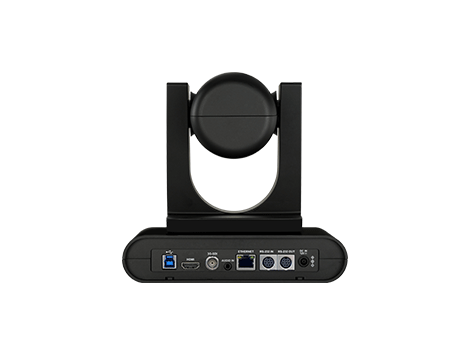

Quad Video Output
The camera delivers video over HDMI and SDI, making it suitable for AV and video workflows. Its USB video output is compatible with most VC / UC platforms and the Ethernet port is optimized to stream video over IP.
| Sensor 1 / 2.8″ 8.6M | Sensor 1 / 2.8″ 8.6M Video Format 2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50 | Video Output (HD) Interface HDMI, Ethernet, 3G-SDI, USB |
| Optical Zoom 12x | Digital Zoom 8x | Horizontal Viewing Angle 81° |
| Vertical Viewing Angle 50° | Diagonal Viewing Angle 90° | Aperture F1.8 ~ F3.6 |
| Focal Length 3.4 ~ 43.3 mm | Shutter Speed 1 / 25 ~ 1 / 10,000 sec | Minimum Object Distance Tele :1m / Wide : 0.1m |
| Video S/N Ratio > 50dB | Minimum Illumination 1 lux (F1.8, 50IRE, 30fps) | Focus System Auto, Manual |
| Gain Control Auto, Manual | White Balance Auto, Manual | Exposure Control Auto, Manual |
| WDR Yes | 3D NR Yes | Image Flip Yes |
| Auto Tracking Yes | Auto Framing Yes | Panning Angle +170 ~ 170° |
| Panning Speed 0.1°~100° / sec | Tilting Angle +90 ~ -30° | Tilting Speed 0.1° / s ~ 60° / sec |
| Preset Positions 256 | HDMI/3G-SDI 2160p60 / 1080p60 | IP Stream Main : 2160p60 Second : 1080p30 |
| IP Compression H.264 | USB Output 2160p30 | USB Compression H.264 / MJPEG / YUY2 / NV12 |
| IP Protocol HTTP/ RTSP / RTMP / RTMPS / SRT / Dante AV-H | PoE PoE+ (IEEE802.3at) | Audio Input Line In |
| Audio Output Ethernet / USB / HDMI / SDI | Audio Compression Format USB : PCM | Interface RS-232 / Ethernet / USB |
| Protocol VISCA / PELCO D / ONVIF | UVC Yes | UAC Yes |
| DC In 12V + / – 20% | Power consumption PoE : 15W DC In : 14W | Body Color Black / White |
| Weight 3.3lbs (1.5kg) | Dimension 7.5″ x 7.3″ x 5.7″ (190 × 185 × 144 mm) |
