PLATO Q82- đầu đọc thẻ
Mã sản phẩm: PLATO Q82

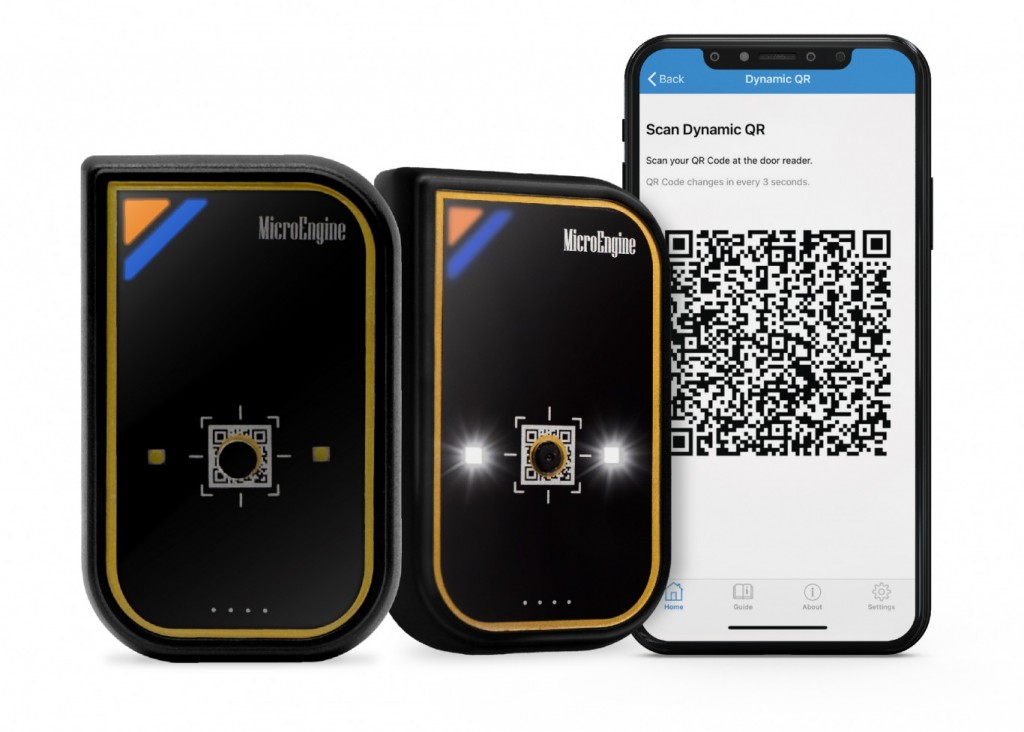

QR Code and Multi Card Reader – PLATO-Q82
Mô tả chi tiết
Slim and stylish design
Supports OnPremQR system
Supports ME Mobile Access app
Supports the reading of both static and dynamic QR codes
QR camera with built-in flash and LED position indicator
MIFARE Classic CSN, MIFARE Sector, DESFire and CEPAS card type
2 stylish LED indicators
Built-in buzzer
| No | Features | Description |
| 1. | Connectivity | RS485 |
| 2. | LED indicator | Amber and Blue |
| 3. | Reader type | QR / MIFARE Classic CSN / MIFARE Sector / DESFire / CEPAS |
| 4. | Card Digits | Max. until 20 |
| 5. | Buzzer | Yes |
| 6. | Card Serial Number Reading (CSN) | Yes |
| 7. | Dimension (H x W x D in mm) | 90 x 57 x 16 |
| 8. | Silicon Sealing | Yes |
| 9. | Reading range | Card – Max 6cm QR Code – 12cm (depending on environment) |
| 10. | Tamper Sensor | Yes |
| 11. | Material | Body – Polycarbonate Faceplate – Acrylic |
| 12. | Input Voltage | 12VDC |
| 13. | Current (Typical) | Typically 160mA at 12VDC |
| 14. | Operating Temperature | 15 – 50°C |
#image_506525673 { width: 100%; }
| No | Documentation |
| 1. | PDF-Icon Plato Q82-Datasheet |
| No | Product Video |
| 1. | youtube-icon_logo_youtube_192px_clr Plato Q82 Product Video |
