QSC
Loa treo trần pendant, dòng AcousticDesign, tích hợp sub, 6.5″, 100W, QSC AD-P.HALO
Mã sản phẩm: QSC AD-P.HALO
Mô tả chi tiết

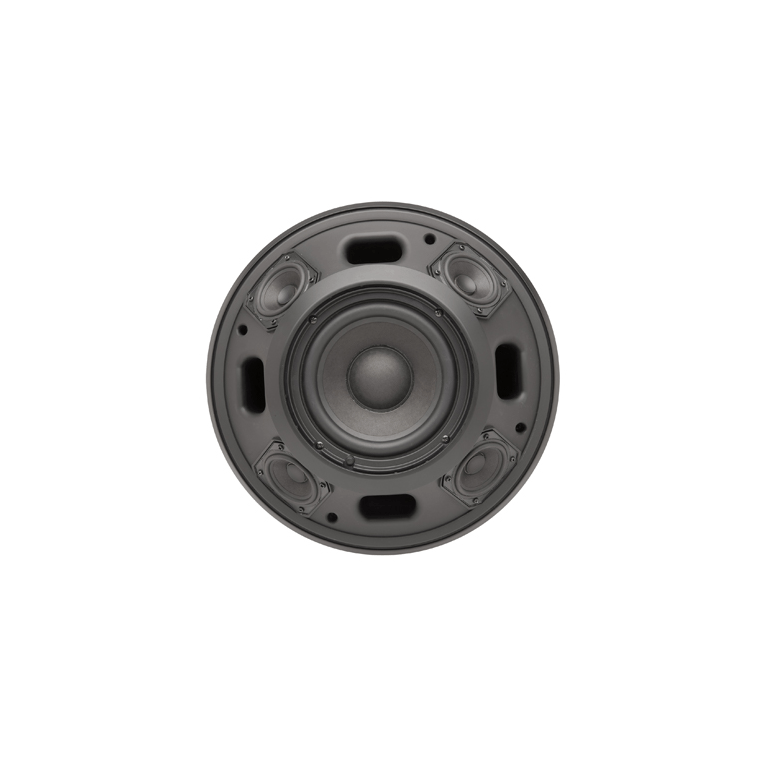

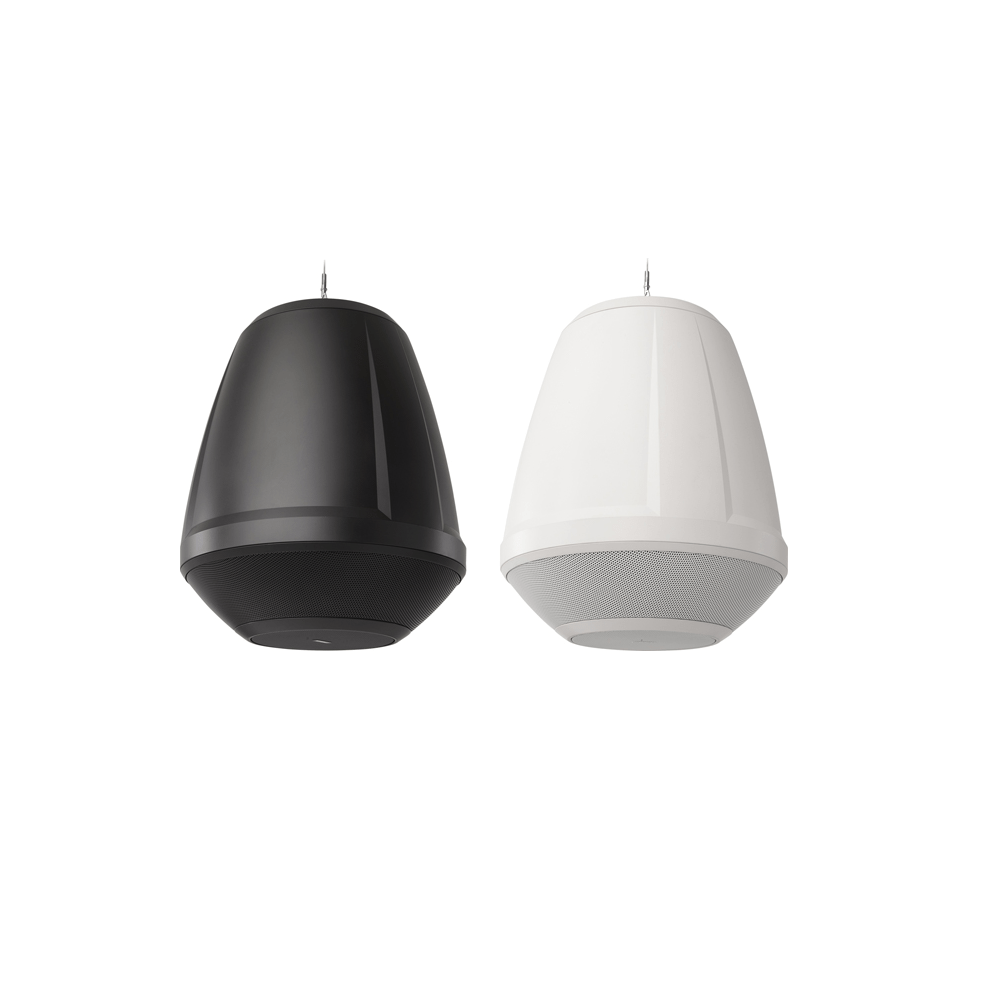

The AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5″ subwoofer and four 2.75″ satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

Think outside the boxes.
Features & Benefits
- All-in-one solution, no assembly required: The AD-P.HALO is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.
- Designed for performance and musicality: Featuring a 6.5″ subwoofer and four 2.75″ transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.
- Perfect AcousticDesign™ Series companion: The AD-P.HALO joins the AcousticDesign Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).
#text-258131065 { color: rgb(0,0,0); } #text-258131065 > * { color: rgb(0,0,0); }

#image_690958002 { width: 100%; }
| System Details | AD-P.HALO |
| Systems type | Integrated SUB/SAT |
| LF Transducer | 6.5 in (165.1 mm) |
| HF Transducer | 4x 2.75 in (69.85 mm) |
| Frequency range | 40 Hz – 20 kHz |
| Sensitivity | 86 dB |
| Rated noise power | 100 W |
| Max noise voltage | 24.5 V RMS |
| Coverage | 110° conical |
| Directivity index | 8 dB |
| Directivity Factor | 6 |
| Maximum SPL (continuous/peak) | 105 / 111 dB |
| Nominal impedance | 6 Ω |
| Crossover frequency | 250 Hz (2nd order low-pass + 3rd order high-pass filters) |
| Transformer Taps | 70 V : 12.5, 25, 50, 100 100 V : 25, 50, 100 |
| Port Tuning | 50 Hz |
| Input connectors | 4-pin male/female Euroblock with pass-thru and locking screws |
| Enclosure material | Injection-molded ABS baffle and enclosure |
| Grille material | Stamped steel, perforated and powder-coated |
| Product dimensions | Diameter: 339.8 (mm) (13.37 in) Height: 433 (mm) (17.04 in) |
| Shipping Dimensions (W x D x H) | 535 x 445 x 435 (mm) (21.06 x 17.52 x 17.13 in) |
| Net weight | 10.2 kg (22.5 lbs) |
| Shipping Weight | 12.5 kg (27.6 lbs) |
