QSC

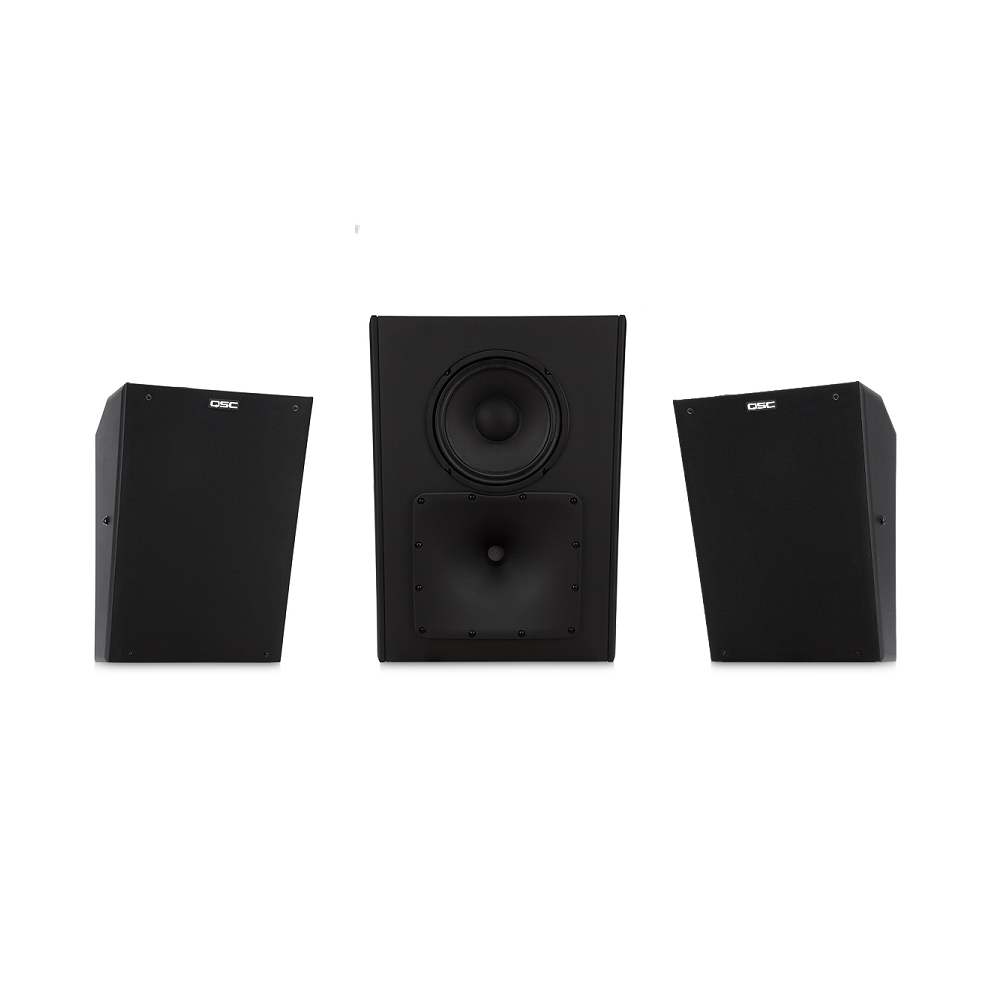

Loa Surround cinema 8″ 200W, 123dB SPL, QSC SR-8200
Mã sản phẩm: QSC SR-8200
Mô tả chi tiết
Features
- High performance in a small package
- Directivity Matched Transition® (DMT) provides balanced sound between woofer and horn
- 8″ (200 mm) woofer with 2″ (50 mm) voice coil
- 1.4″ (35 mm) titanium diaphragm compression driver
- Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
- High-power handling capability meets the demands of D-Cinema soundtrack reproduction
| SPECIFICATIONS | SR-8200 |
|---|---|
| Frequency Range 1 (-10 dB, half space) | 52 Hz to 20 kHz |
| Rated Coverage Angle | 90° axisymmetric |
| Maximum Rated SPL 4 Calculated Peak at rated power Calculated Continuous | 123 dB 117 dB |
| Rated Impedance | 8 ohms |
| Rated Noise Power 2 Recommended Amplifier Power | 200 watts 400 watts into 8 ohms |
| Sensitivity 2.83 V at 1 m, free-field3 | 94 dB |
| Crossover Frequency | 2.6 kHz |
| Recommended Processing | Subsonic filter at 50 Hz as provided by QSC DCA amplifiers |

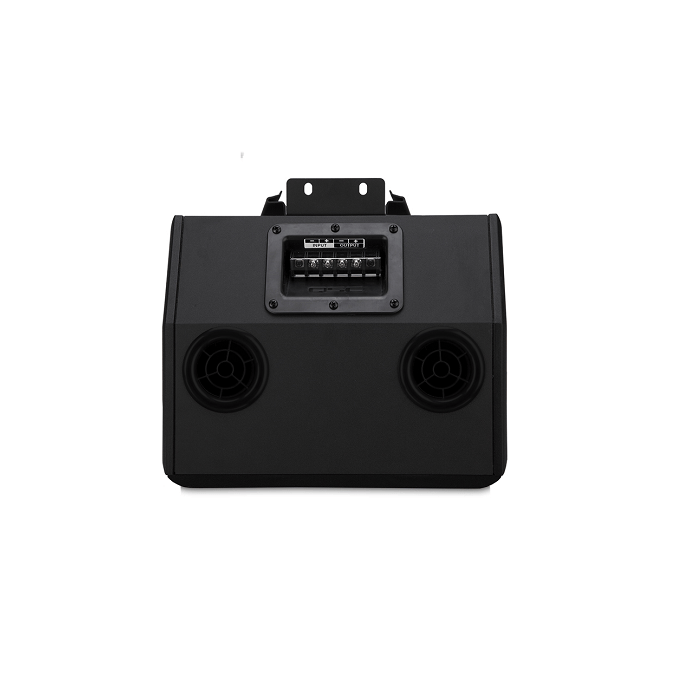

| Connectors | Barrier strip screw terminals accept up to #10 AWG stranded wire |
| Transducers | 8″ long throw low frequency transducer 1″ titanium diaphragm compression driver on an axisymmetric horn |
| Enclosure | MDF, baffle angle is 15° downward |
| Dimensions (HWD) inches | 19.5 × 14.3 × 9.6 |
| Dimensions (HWD) mm | 495 x 363 x 244 |
| Weight | 24.6 lb (11.1 kg) |
1 Free-field, -10 dB from on-axis sensitivity
2 IEC60268-1 noise signal for 2 hours
3 On-axis, free-field sensitivity, 2.83V at 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
