QSC

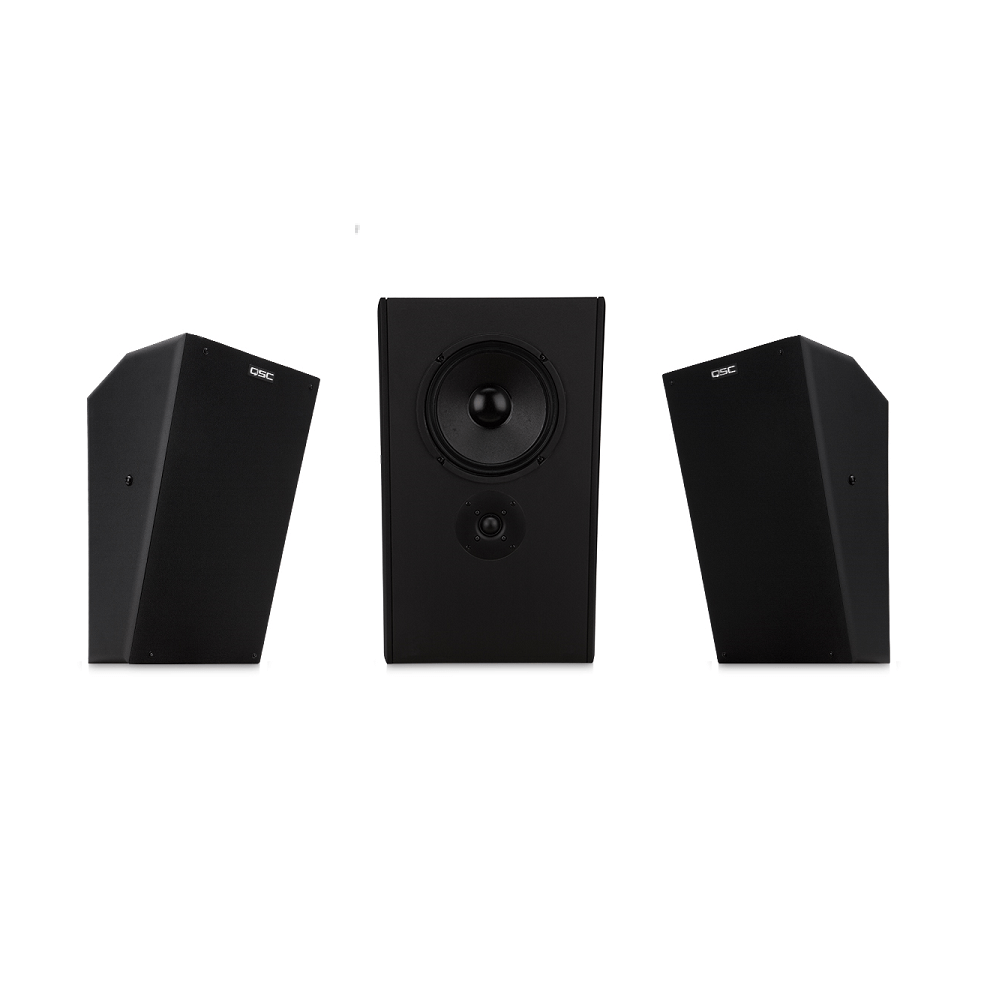

Loa surround cinema 8″, 125W, 118 dB SPL, QSC SR-8101
Mã sản phẩm: QSC SR-8101
Mô tả chi tiết
Features
- Parallel outputs for feeding additional units
- 130° horizontal dispersion

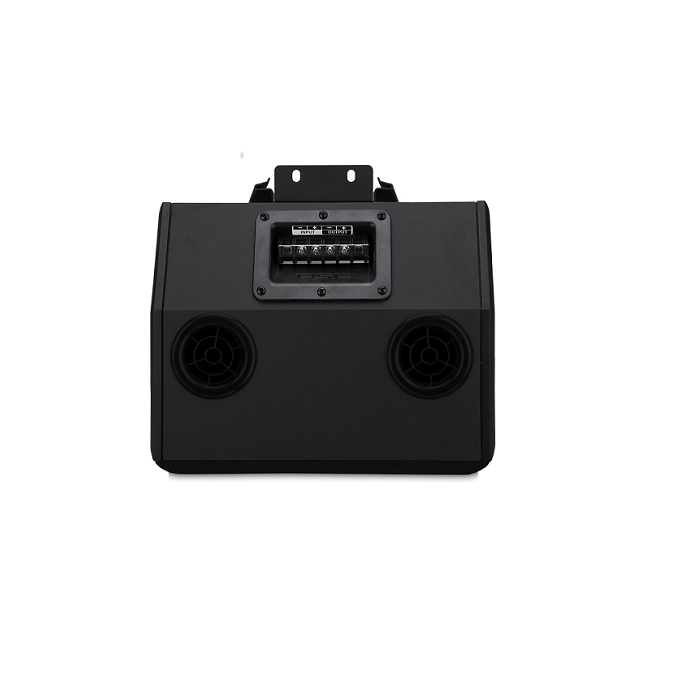

- Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
| SPECIFICATIONS | SR-8101 |
|---|---|
| Frequency Range 1 (-10 dB, half space) | 54 Hz to 20 kHz |
| Nominal Coverage | 130° horizontal x 110° vertical (averaged from 1 kHz to 8 kHz, -6 dB) |
| Maximum Rated SPL 2 Calculated Peak at rated power Calculated Continuous | 118 dB 112 dB |
| Rated Impedance | 8 ohms |
| Rated Noise Power 3 | 125 watts |
| Sensitivity 1 watt/1 meter, free-field4 | 91 dB |
| Crossover Frequency | 1.7 kHz |
| Recommended Processing | Subsonic filter at 50 Hz |
| Connectors | 4-position barrier strip, accepts up to #10 AWG stranded wire |
| Transducers | 8″ long throw low frequency transducer 1″ soft dome tweeter |
| Enclosure | MDF, baffle angle is 15° downward |
| Dimensions (HWD) inches | 19.5 × 12 × 9.6 |
| Dimensions (HWD) mm | 495 × 305 × 244 |
| Weight | 18.6 lb (8.4 kg) |
1 Free-field, -10 dB from on-axis sensitivity
2 Calculated from rated noise voltage and sensitivity
3 IEC60268-1 noise signal for 2 hours
4 On-Axis, free-field sensitivity, 2.83V at 1 m
Specifications are subject to change without notice.
