Loa Surround cinema 10″, 150W, 122 dB, QSC SR-1000
Mô tả chi tiết

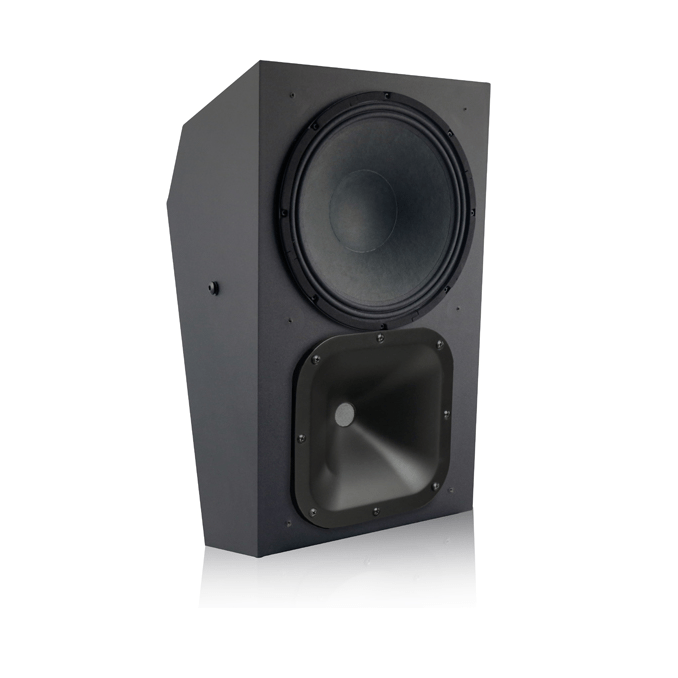

The SR-1000 Cinema Surround Loudspeaker is a two-way design that features a 10″ (254mm) low-frequency transducer with a 1″ (25mm) compression driver. The 150 watt continuous power rating and sophisticated crossover circuitry provides absolute reliability.

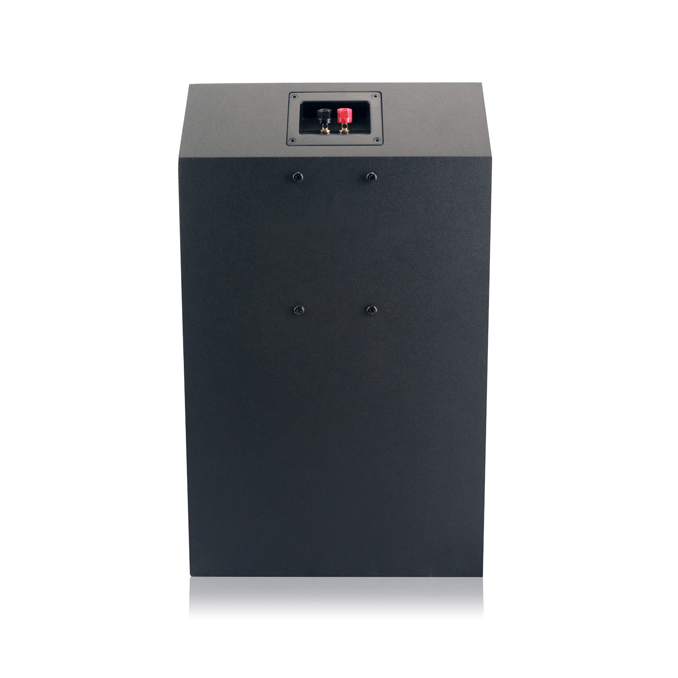

The SR-1000 is designed for safe and secure mounting. The cabinet is constructed of 12mm MDF with internal bracing for superior structural integrity. The rear panel of the cabinet is fitted with four threaded insert mounting points that accommodate the standard bolt pattern for most third-party bracket manufacturers. Included pre-installed speaker side hardware allows fast single-installerwall mounting, and brackets support down- angles of either 15° (QM-SW, ordered separately) or 23° (QM-BW, ordered separately). A traditional U-bracket “yoke” style bracket (YM-300) is also available.

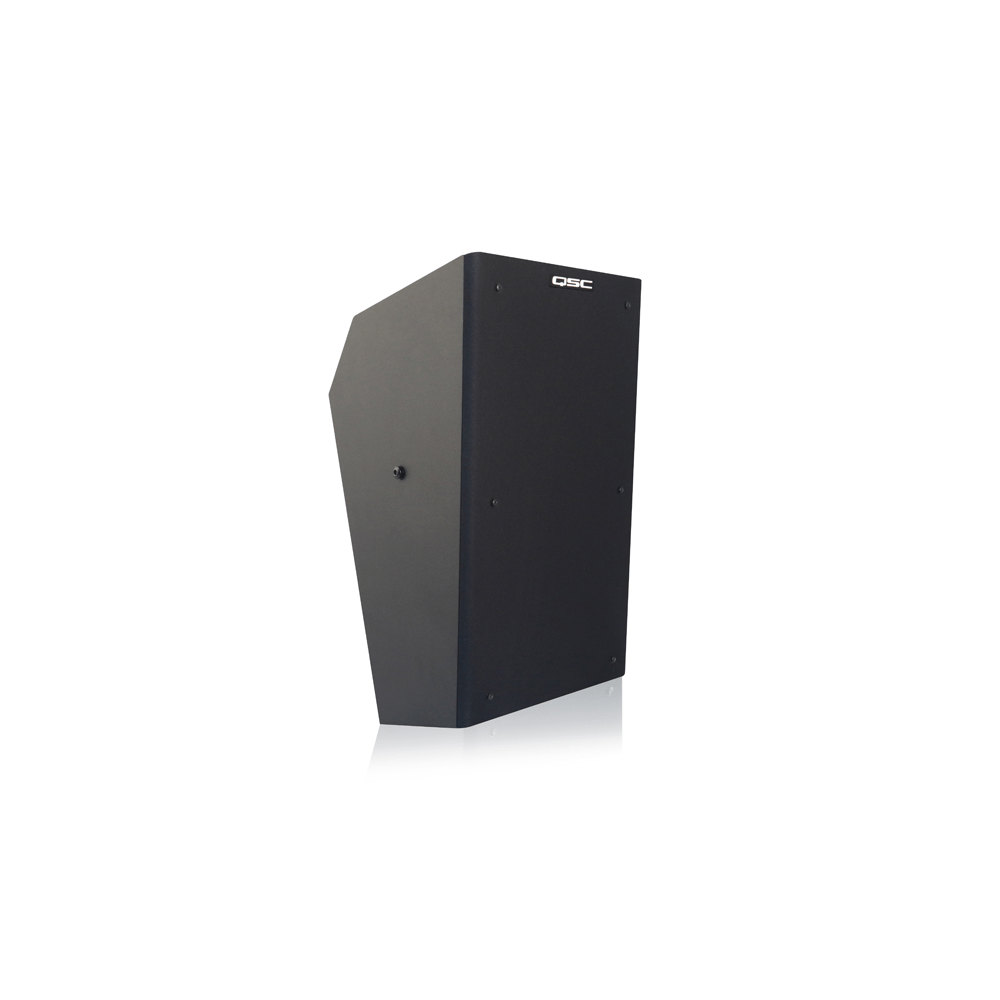

The compact black enclosure with black grille blends into any theatre decor.
Features
- High Performance for all Cinema applications
- 10″ (254 mm) woofer
- 1″ (25 mm) compression driver
- Pre-installed speaker-side QM mounting hardware
- Accepts YM-300 yoke bracket
| SPECIFICATIONS | SR-1000 |
|---|---|
| Frequency Range 1 (-10dB, Half space) | 64 Hz to 20 kHz |
| Rated Coverage Angle (-6 dB) | 90° conical |
| Maximum Rated SPL 4 Calculated Peak at rated power Calculated Continuous | 122 dB 116 dB |
| Rated Impedance | 8 ohms nominal |
| Rated Noise Power 2 Maximum Recommended Amplifier Power | 150 watts 500 watts |
| Sensitivity3 | 94 dB |
| Input Connectors | Two 5-way binding posts, accepts up to #10 AWG stranded wire |
| Transducers | 10” (254 mm) LF driver 1” (25 mm) HF compression driver |
| Enclosure Material | 12mm MDF with black vinyl wrap, matte finish |
| Dimensions (HWD) inches | 19.5 x 11.7 x 11.5 |
| Dimensions (HWD) mm | 495 x 298 x 291 |
| Net Weight | 19.8 lb (9 kg) |
| Brackets | QM-SW, QM-BW, YM-300 |
1 Free-field, -10 dB from on-axis sensitivity
2 AES2-1984 noise signal for 2 Hrs
3 On-axis, free-field sensitivity, 1W, 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
