Loa cột column array, dòng AcousticDesign, 60W, QSC AD-S802T
Mã sản phẩm: QSC AD-S802T
Mô tả chi tiết
The all-new AcousticDesign™ Series AD-S802T is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features
- Deliberately unobtrusive industrial design.

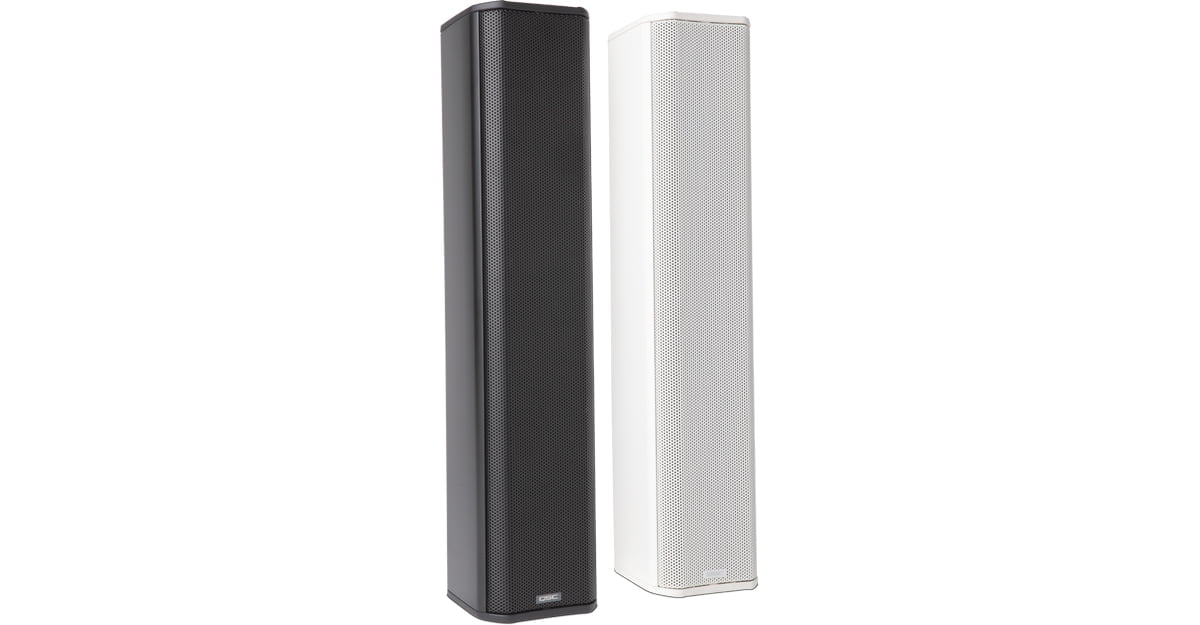

- Available in white (RAL 9010) or black (RAL 9011).
- Paintable enclosure and grill.
- Complete EASE, CLF, CAD & BIM information.
- Rugged aluminum construction.
- UV Inhibitors in all white models.
- IP-54 rating for dust and splash resistance.
- Powder-coated grills and weather-treated cones.
- Close to wall pan/tilt bracket included.
- Low saturation 70/100V transformers.
- 8 ohm low impedance bypass.
- Screw-down Euro block connector with loop-through.
- Sealable input weather cup – keeps moisture away from wiring.
| System Details | AD-S802T |
| Transducer | (x8) 2.75 in (69.8 mm) weather treated paper cone woofer |
| Effective frequency range 1, 2, 3, 8 | 90 Hz – 17 kHz |
| Rated noise power / voltage 6 | 120 watts / 31 volts (rms) |
| Sensitivity [dB] | Rated @1W, 1m 2, 3, 4, 8 : 87 EN54-24 @1W, 4m 9 : TBD |
| Coverage (‐6 dB) [°] Horizontal x Vertical 9 | Rated 2, 5, 8 : 160 x 20 500Hz: 180 x 90, 1kHz: 180 x 35 2kHz: 160 x 22, 4kHz: 180 x 20 |
| Declared values of SPL, 1/3rd octave band CPB, 1W, 4m, EN54-24 eq applied [Hz : dB] 9 | 500: TBD; 630: TBD; 800: TBD; 1000: TBD 1250: TBD; 1600: TBD; 2000: TBD; 2500: TBD 3150: TBD; 4000: TBD |
| Directivity factor 2, 5, 8 | TBD |
| Directivity index [dB]2, 5, 8 | 12 |
| Maximum SPL [dB] | Rated, 1m (continuous / peak) 7 : 108 / 114 EN54-24, 4m (low-Z / Highest-tap) 9 : TBD / TBD |
| Recommended amplifier | 120 watts |
| Transformer taps / impedance | Bypass: 8Ω 7.5W (70V); 15W (100V) Tap: 666Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); 60W (100V) Tap: 167Ω 60W (70V); N/A (100V) Tap: 83Ω |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Powder coated aluminum |
| Grille material | Powder coated aluminum |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor or outdoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 13.7 lb (6.2 kg) |
| Product dimensions (H x W x D) | 23.4 x 5.2 x 5-inch (595 x 131 x 126 mm) |
| Shipping Weight | 19.4 lb (8.8 kg) |
| Shipping Dimensions (H x W x D) | 12.3 x 9.9 x 32.4-inch (312 x 251 x 823 mm) |
| Included accessories | Sealed input cover plate with gland nut Quick Hang Pan/Tilt wall bracket Shoulder eyebolt safety tether anchor |
| Safety Agency | UL1480A EN54-24: 2008 type B, (pending) Transformer UL registered per UL1876, ROHS, CE compliant |
