AVPRO EDGE

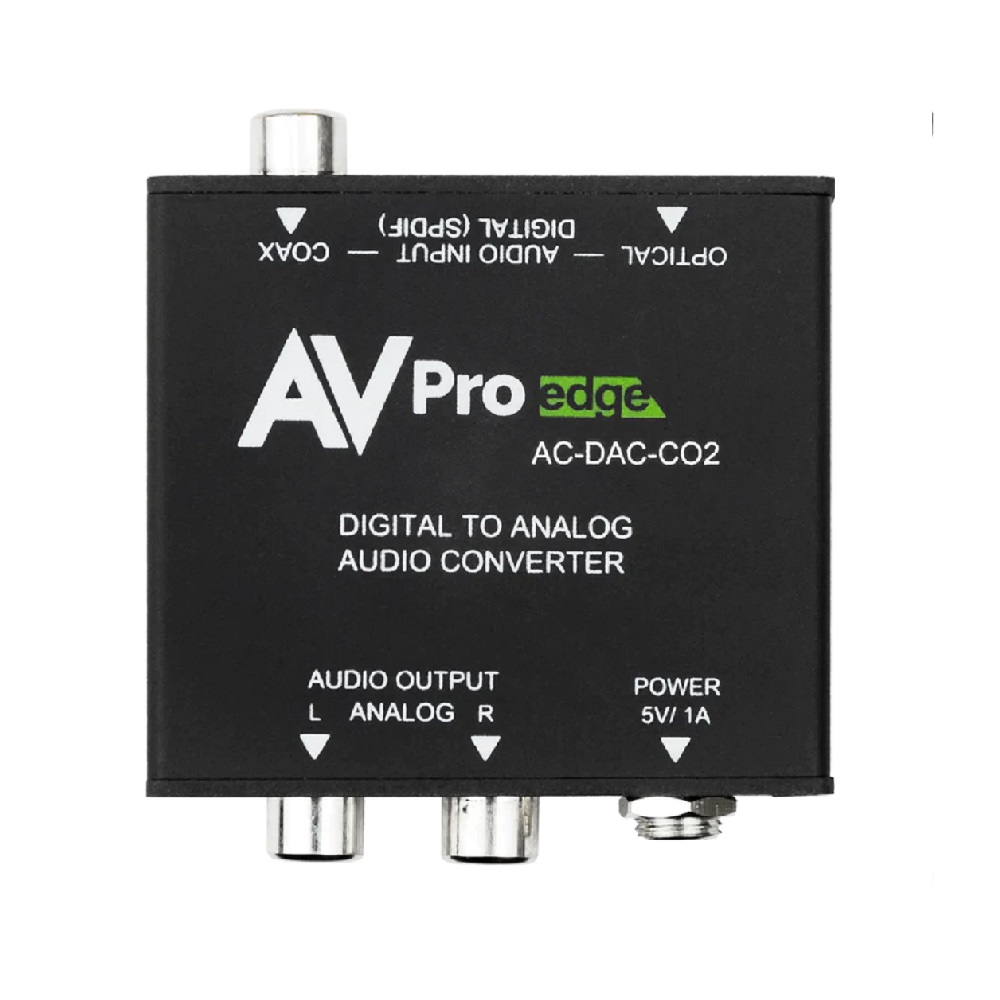

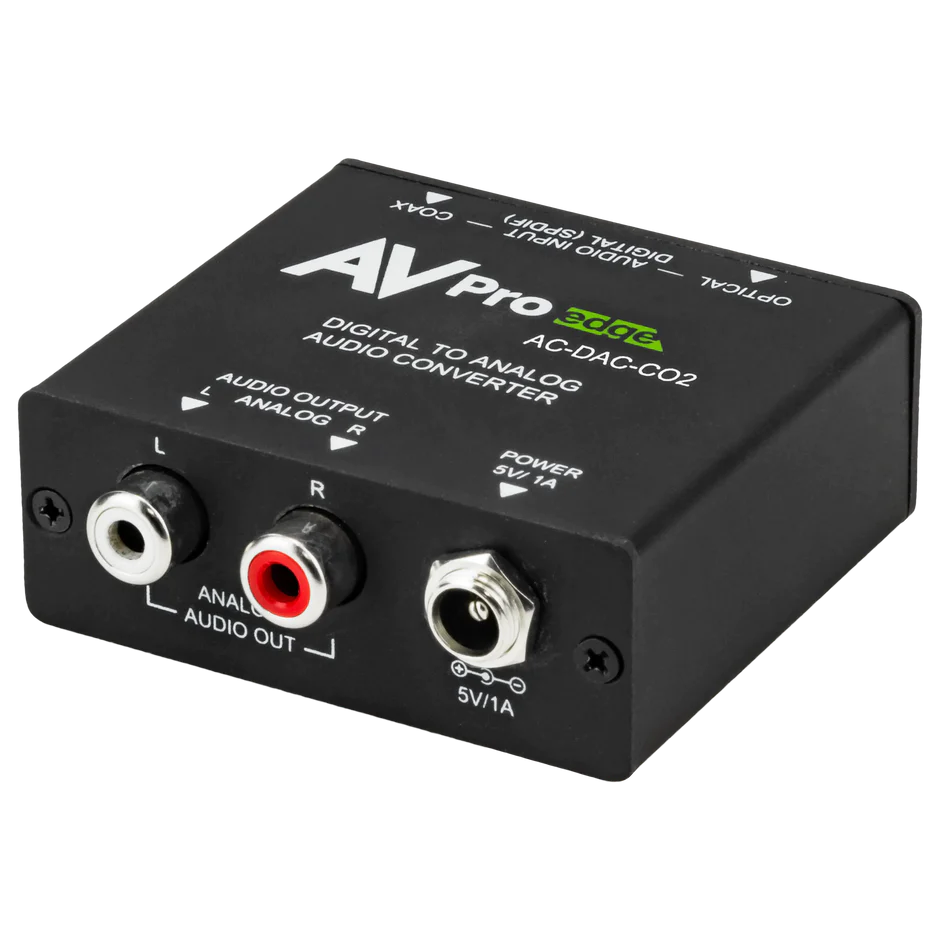

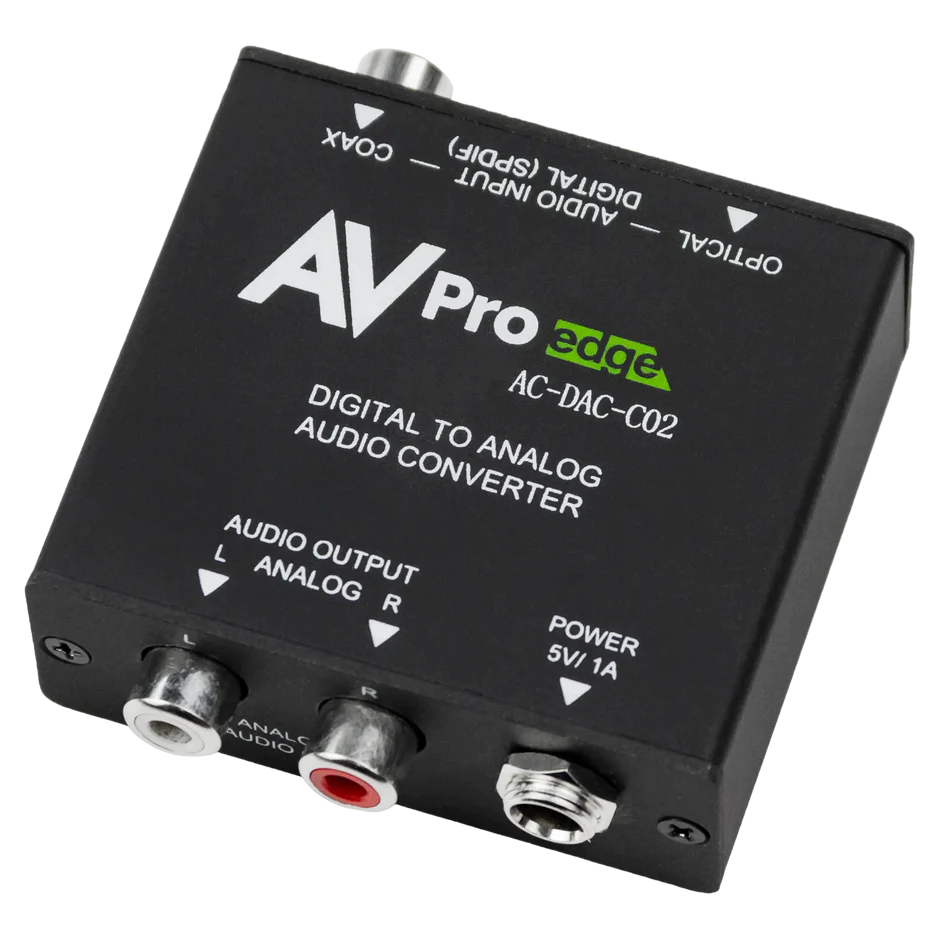

Digital to Analog Audio Converter-AC-DAC-CO2
Mã sản phẩm: AC-DAC-CO2
HDTV Digital Output Conversion 24-Bit Conversion Supports S/PDIF audio at 192kHz/24-bit data for conversion to left and right analog channels Integrated digital interpolator filter and Digital-to-Analog Converter (DAC) SKU: AC-DAC-CO2
Mô tả chi tiết
Description
AVPro Edge’s Digital to Analog Audio Converter is an easy-to-use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs. Its compact, elegant design and simple LED input status make it easier for users to connect up and use instantly.

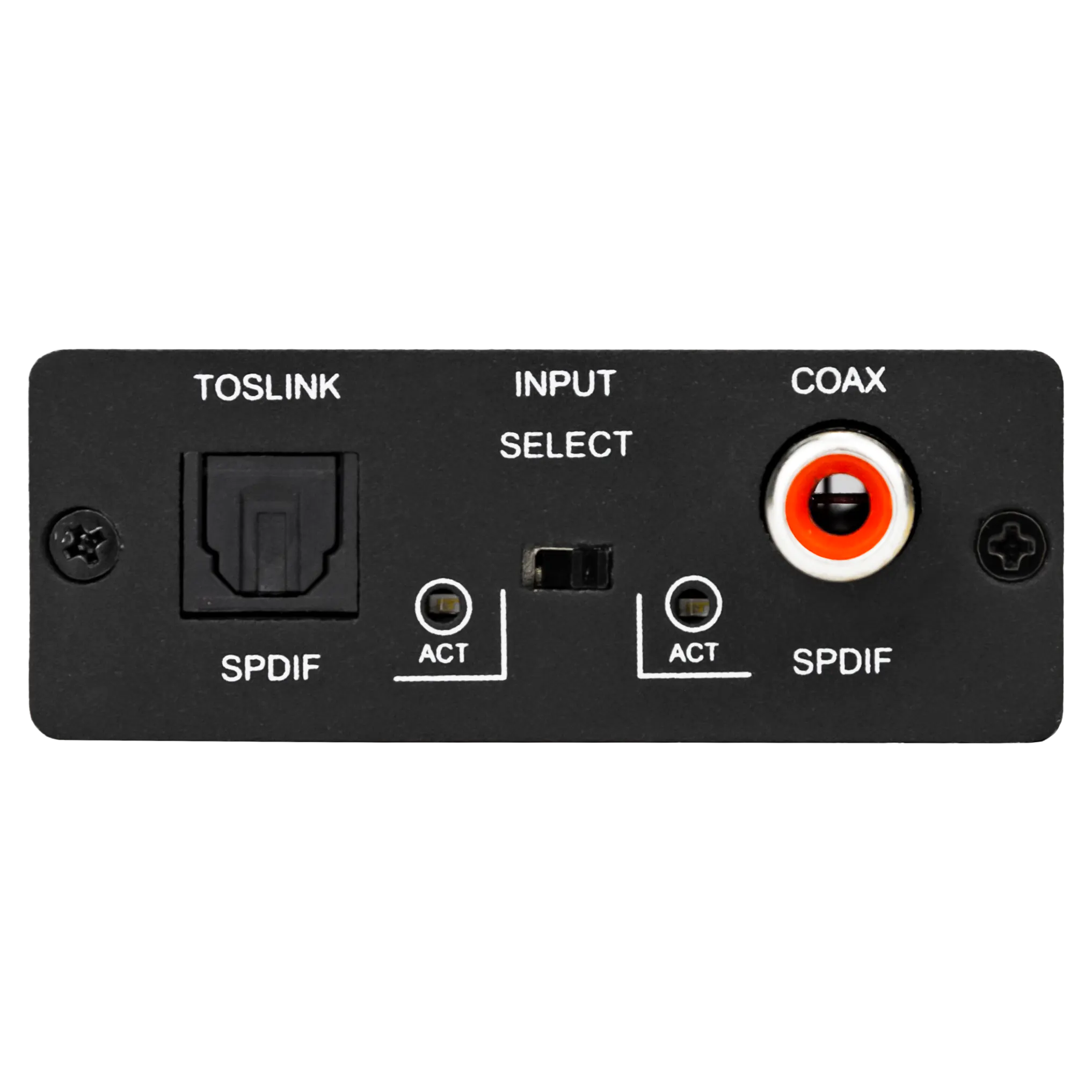

| Input Ports | 1×TOSLINK (S/PDIF Audio) 1×RCA (S/PDIF Audio) |

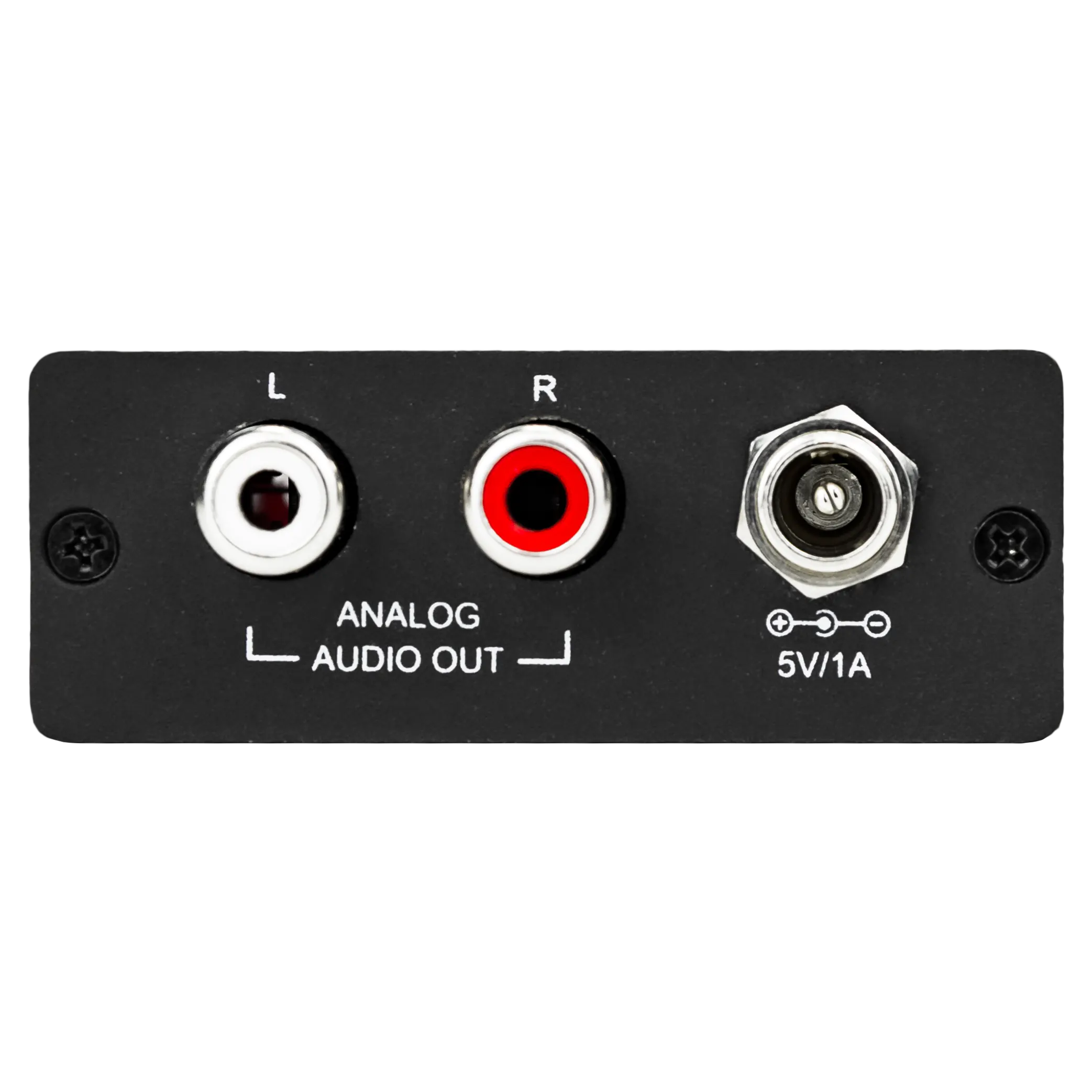

| Output Ports | 2×RCA (Stereo Audio) |
| Input Audio Format | LPCM 2.0 |
| Output Audio Format | Analog 2.0 |
| Input Sampling Rates | 32kHz, 44.1kHz, 48k Hz, 88.2kHz, 96kHz, 176.4kHz &192kHz |
| Output Level | 2Vrms |
| Output Impedance | 600Ω |
| ESD Protection | Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) |
| Weight | 30g |
| Chassis Material | Plastic |
| Operating Temperature | 0˚C – 40˚C/32˚F – 104˚F |
| Storage Temperature | −20˚C – 60˚C/−4˚F – 140˚F |
| Relative Humidity | 20 – 90% RH (Non-condensing) |
| Power Supply | 5V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 0.74W |
