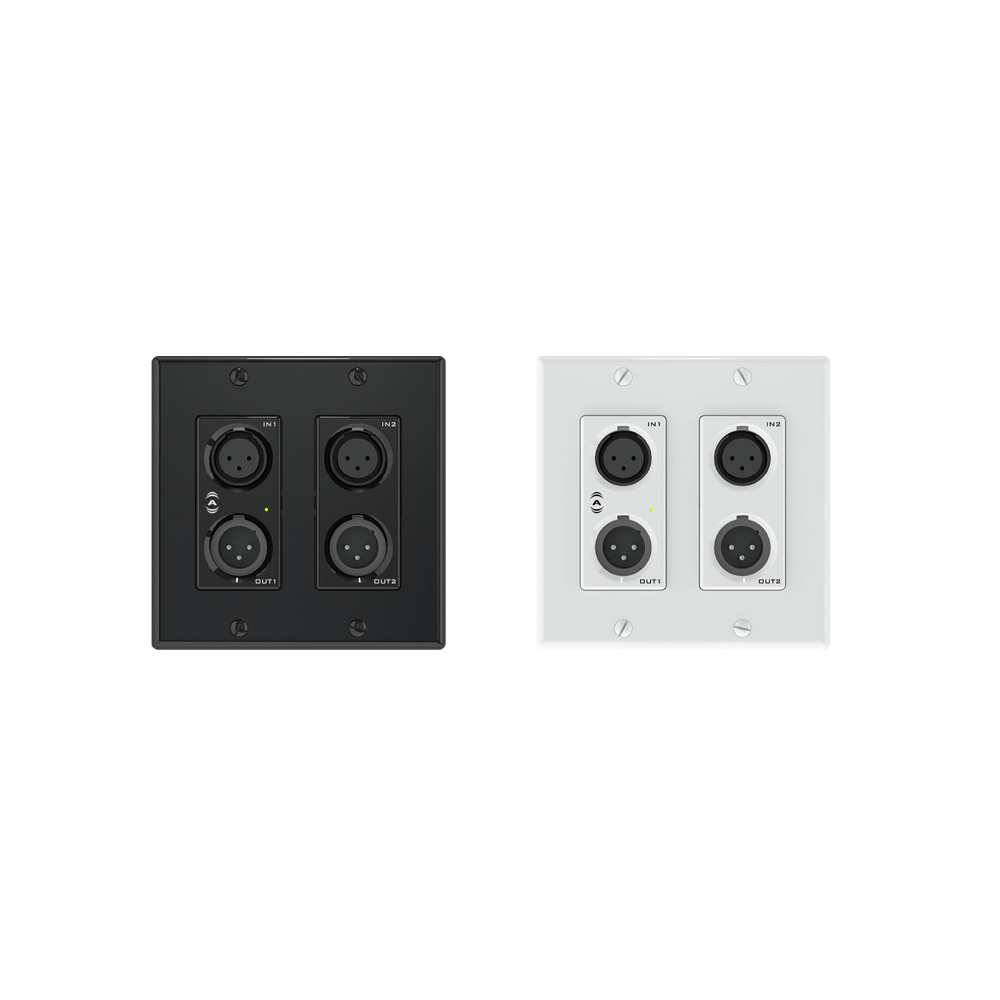

Bộ mở rộng 2×2 XLR gắn tường qua mạng QSC unDX2IO+
Mã sản phẩm: unDX2IO+
Mô tả chi tiết
The unDX2IO+ is a cost-effective multi-IO Dante™ audio network wallplate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.
Features
- Dante Domain ManagerTM ready
- Small form factor allows for easy co-location near analog sources or sinks
- PoE powered (802.3af)
- Four input gains to accommodate common line levels and dynamics
- +48 V phantom power per channel
- Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment – both consumer and professional levels
- Industry standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
- Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
| Audio Inputs | |
| Input types | 3-pin XLR (balanced and RF filtered) |
| Gain | -18 dB, -3 dB, +25 dB, +40 dB, software-selectable |
| Phantom power | +48 V, software-selectable |
| Audio Outputs | |
| Output type | Balanced line level with automatic muting on loss of Dante signal |
| Maximum output level | +20 dBu |
| Dante Network | |
| Physical level | Standard ethernet |
| Connector | Single RJ-45 |
| Supported sample rates | 44.1 kHz, 48 kHz |
| General | |
| Dimensions (HWD) | 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm) |
| Weight | 0.6 lb (.27 kg) |
