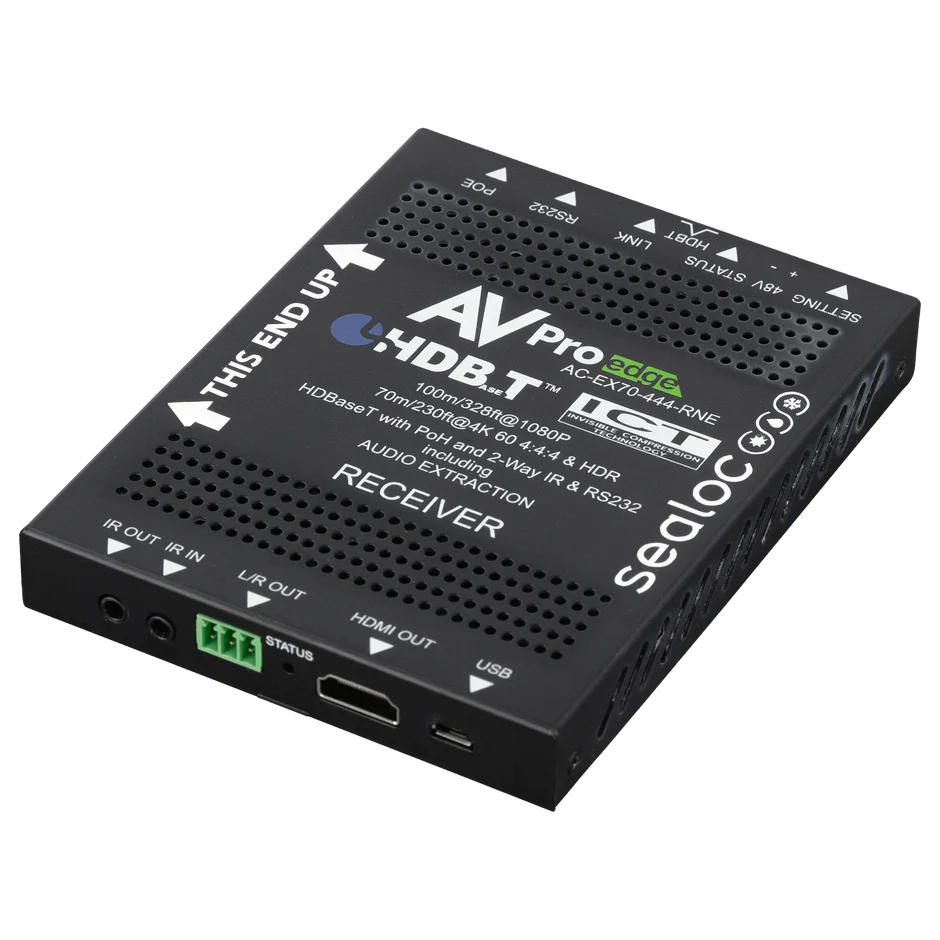

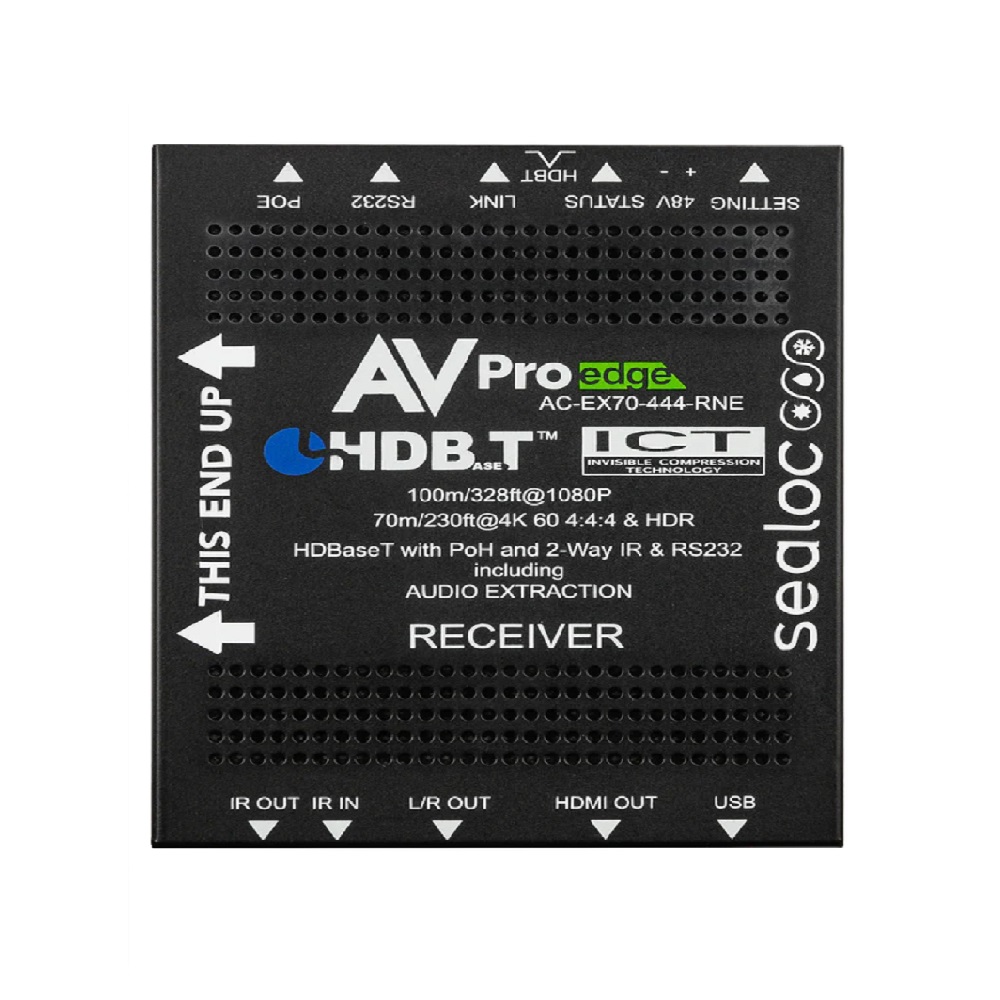

70M 18Gbps Weatherproof HDBaseT Receiver- AC-EX70-444-RNE-SEA
Protects against Direct Rain Protects against Dust and Humidity Protects against Sea and Salt Fog Protects against Some Chemicals Protects against Heat SKU: AC-EX70-444-RNE-SEA
Mô tả chi tiết
Description
The AC-EX70-444-KIT-SEA is the weatherproof version of the AC-EX70-444-KIT.
Protecting delicate electronics with Sealoc’s nano-coating solution creates a virtually invisible, durable, waterproofing protective layer that works primarily with AVPro Edge’s own computer boards and components.
Invisible Compression Technology: ICT revolutionized HDMI extension technology implemented into HDBaseT. Bandwidth limitations with 4K signals sent through copper category 5E, 6, and 6A cabling are overcome by our proprietary algorithm. Compatible with all HDR and high-bitrate audio codec metadata, the highest quality display devices remain artifact-free when accepting ICT signals.Extend 4K60 4:4:4 with HDR Signals: HDCP was conceived to assure content holders copy protection for their media. The 19 conductor HDMI format was designed to facilitate this process when transporting media between devices, using a total of 8, small gauge wires to handle video information with the bulk of those remaining devoted to system policing. It wasn’t envisioned that sources would be placed elsewhere than the immediate display location, and the first HDMI cable designs dramatically exemplified these inherent problems with a useable HDMI cable length barely exceeding fifteen feet. Over time, this thankfully has been addressed in a variety of well-sorted ways, including AVPro Edge Bullet Train cables. Still, there are no “on-site, made to length” HDMI cables however with unrivaled ease, the extraordinary AC-EX70-444-RNE extends a high bandwidth UHD 4K source an impressive two hundred and thirty feet including Dolby Vision, HDR10, HDR10+, or HLG.On-board Troubleshooting: Leave your Fox & Hound test kit behind in the shop? The AC-EX40-444-KIT has you covered. When required, the transmitter can generate a 1080P or 4K test pattern to aid with wire verification, switcher configuration settings, or source viability.Bi-Directional IR & RS232 Management: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa. Send control signals up to 70 meters over HDBaseT to accomplish long distance device control allowing for more flexibility in system design and installation.
| Video: | |
| Video Resolutions | Up to 4K 60Hz 4:4:4 |
| VESA Resolutions | Up to DCI 4K (4096×2160) |
| HDR Formats/Resolutions | 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG, Dolby Vision |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 bit (1080), Up to 12 bit (4K) |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted (2CH Port) | PCM 2 Ch (No Downmix) |
| Distance: | |
| HDBaseT (CAT) Distance (4K) | 70 Meters / 230 Feet (Cat 6a) |
| HDBaseT (CAT) Distance (Full HD) | 100 Meters / 330 Feet (Cat 6a) |
| HDMI Lead In/Out (4K60 4:4:4) | Up to 50 Feet (using Bullet Train HDMI) |
| HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4) | Up to 130 Feet (using Bullet Train AOC) |
| Other: | |
| Bandwidth | 18 Gbps (W/ ICT) |
| HDCP | HDCP 2.3 and Earlier |

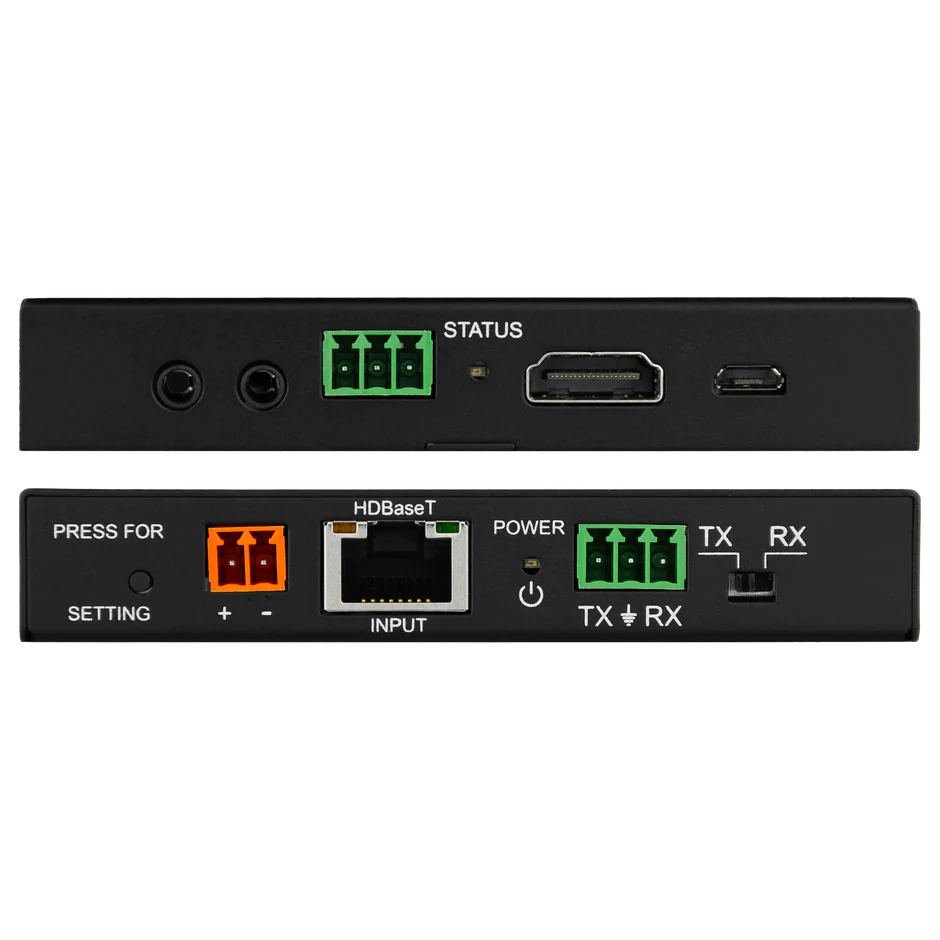

| Ports: | |
| HDMI | Type A |
| HDBaseT | RJ45 w/ PoH for HDbaseT Receivers |
| Audio (Extracted Analog) | 3 pin terminal block (Unbalanced) |
| IR TX | 3.5MM Mono (2 Conductor) |
| IR RX | 3.5mm Stereo (3 Conductor) |
| RS-232 | 3 Pin Terminal Block |
| Power | 2 Pin Terminal Block |
| Environmental: | |
| Operating | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 12 Watts Max |
| Power Supply – Matrix | Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5A |
| Dimensions: | |
| Dimensions (Unit Only Height/Depth/Width) | mm: 132 X 100 X 18 inch: 5.19 X 3.94 X 0.69 |
| Dimensions (Packaged Height/Depth/Width) | mm: 137 X 194 X 45 inch: 5.38 X 7.62 X 1.75 |
| Weight (Unit) | 0.5 lb/0.23 kg |
| Weight (Packaged) | 1 lbs/0.45 kg |
| *Specifications subject to change without notice. Mass & dimensions are approximate |

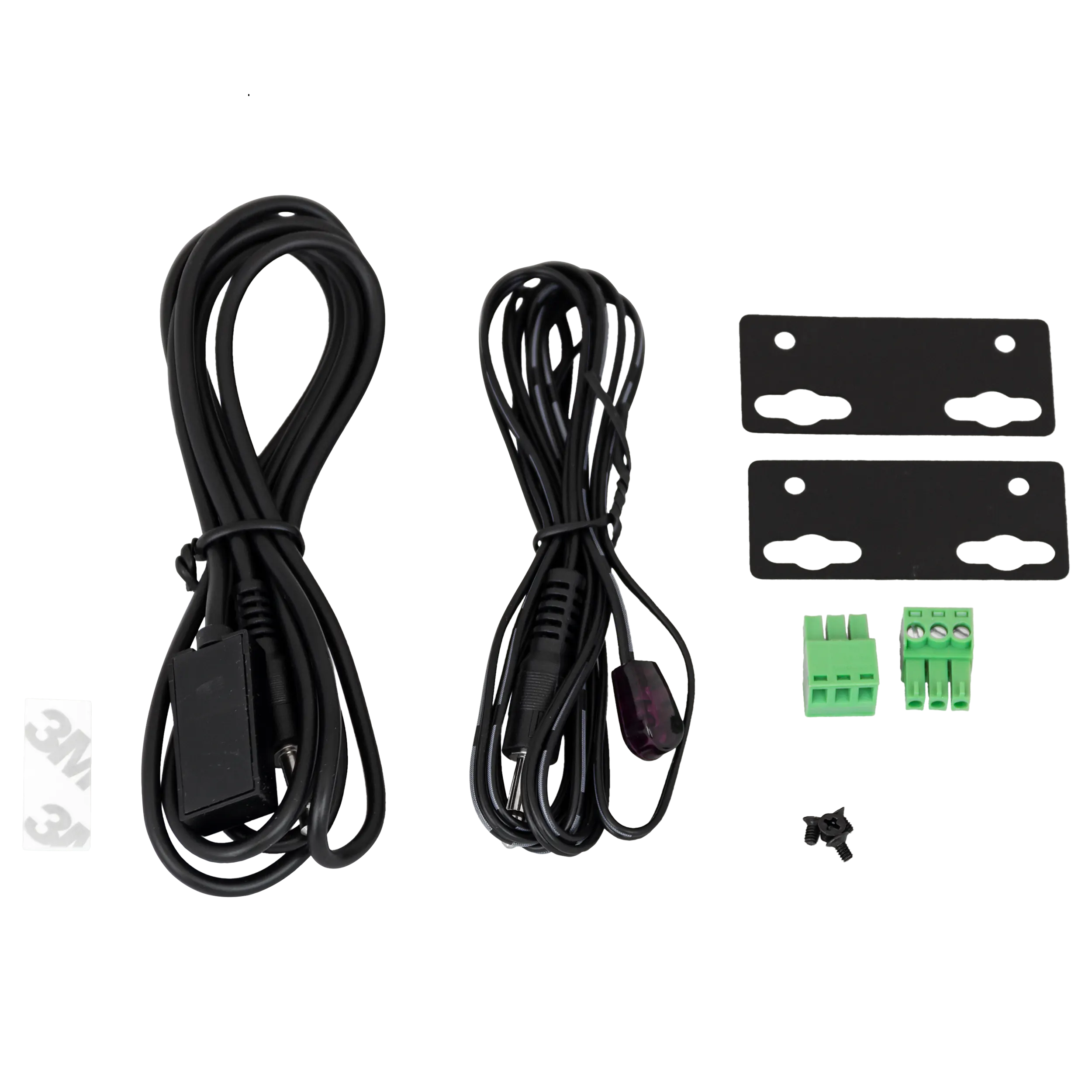

- AC-EX70-444-RNE-SEA (Receiver)
- 1 x IR Tx Unit
- 1 x IR Rx Unit
- 2x 3 Pin Terminal blocks for Audio and RS232 Ports
- 2 x Mounting Brackets
- 4 x Screws for Mounting Brackets
