10″ Two-Way Multipurpose Self-Powered Sound Reinforcement System

PRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size.

Features

• 133 dB peak SPL

• 10″ low-frequency driver for low-distortion and higher SPL

• 1.5″ diameter next generation JBL neodymium compression driver

• JBL designed waveguide for accurate coverage

• Efficient Class-D amplifier technology

• Normal and Boost user selectable EQ presets

• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

• Line level and direct microphone input capability

• Professional XLR-1/4″ combination inputs, RCA inputs, and XLR loop-through

• Integrated 36 mm pole mount socket

• Integrated handle with injection molded backing cup for easy transport

• Integrated M10 suspension points for easy setup

• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.

• Cloth backed, dent-resistant 16 gauge steel grilles

• The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer, offering a high performance self-powered sub/sat system.

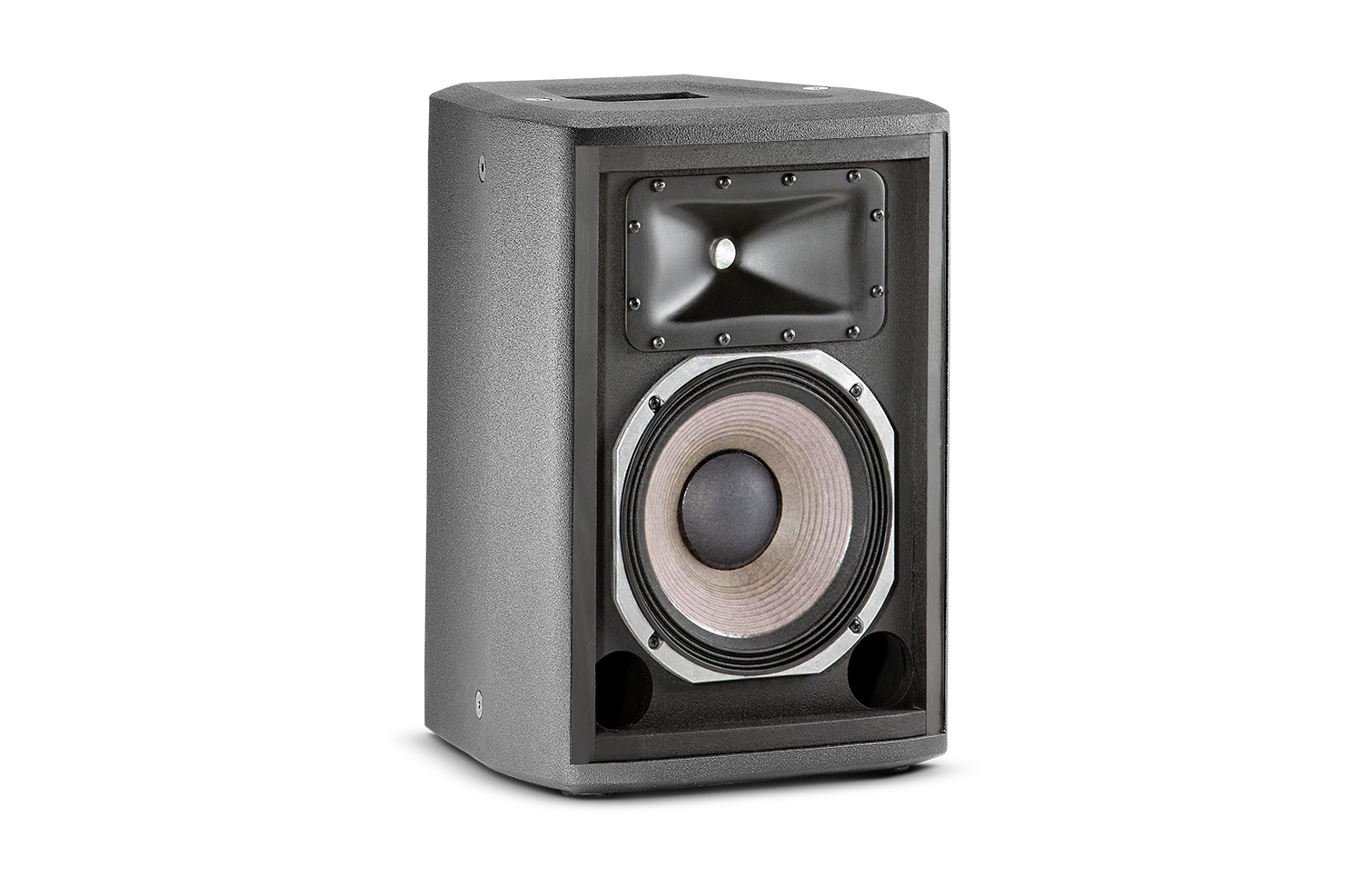

• The PRX710 is comprised of a 10″ woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

• All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
  1000 lbs. each.

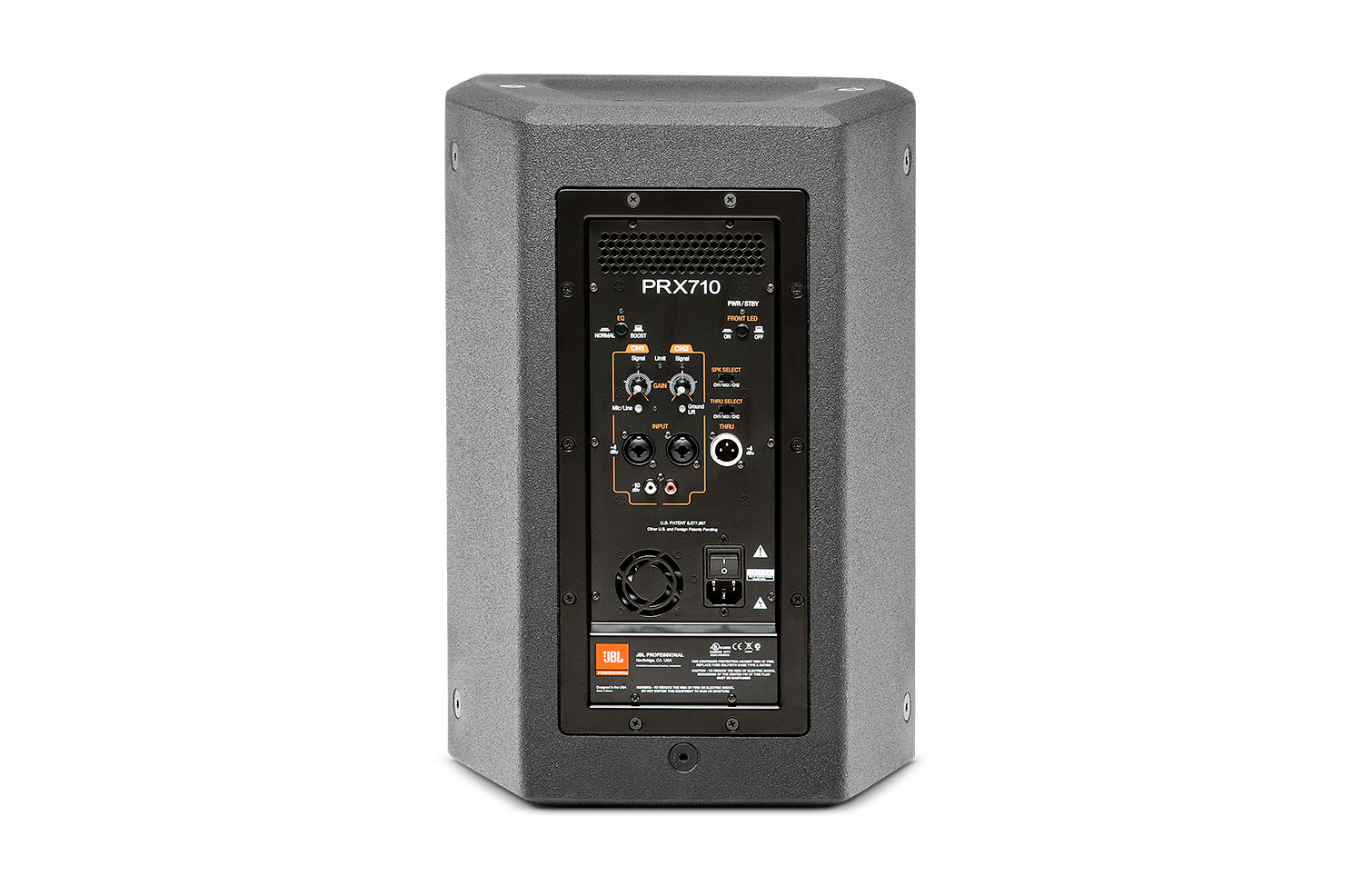

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications
