MICROENGINE

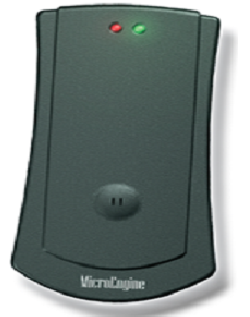

XP-RDPRX- đầu đọc thẻ
Product code: XP-RDPRX-
(Proximity Card Reader)
Detailed Description
Simple
Reliable
Weather proof
| No | Features | RDPRX | RDMFX |
| 1. | Connectivity | ABA T2 | |
| 2. | Reader type | EM Proximity | ISO14443 A/B / Mifare |
| 3. | Card Digits | 6 | |
| 4. | Reading range | Max. 7cm | Max. 3cm |
| 5. | LED indication | Green and Red | |
| 6. | Buzzer | Yes | |
| 7. | Dimension (HxWxD) | 100mm x 53mm x 20mm | 125mm x 94mm x 30 mm |
| 8. | Epoxy | Yes | No |
| 9. | Weather proof | Yes | No |
| 10. | Casing Material | ABS plastic | |
| 11. | Input voltage | 12VDC | |
| 12. | Current (Typical) | 150mA at 12VDC | |
| 13. | Operating Temperature | 0-50◦C |
#image_673532762 { width: 100%; }
FAQ
1. I have purchased XP-SR200K and I need to…
- To configure XP-RDPRX as exit reader and XP-GT as entry reader for single door, see article ID: AA-00211
2. I have installed XP-RDPRX at my site, but how do I configure the controller
- How to set the XP-RDPRX as entry, while reader with keypad as exit, see article ID: AA-00306
