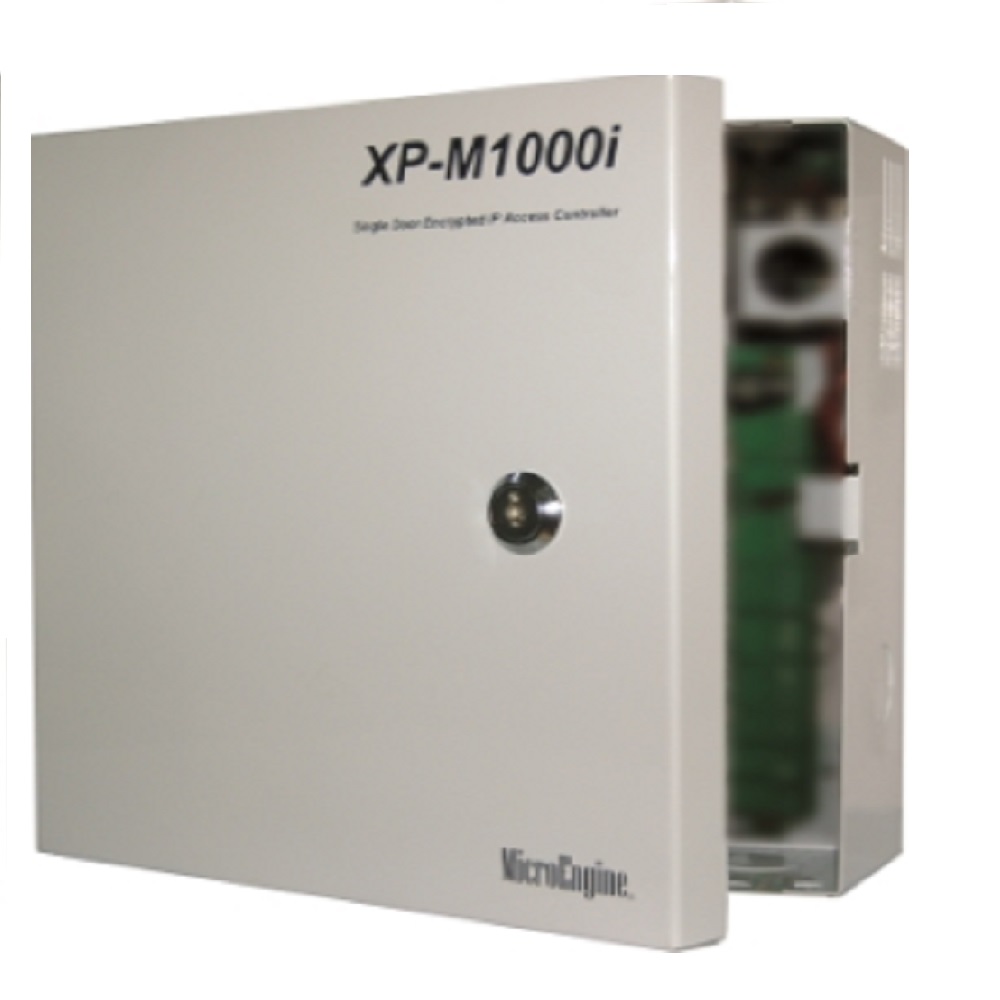

XP-M1000i- bộ điều khiển cửa

1 Door IP Access Controller\n\n* Encrypted IP\n* Direct TCP/IP\n* High Capacity\n* Supports Up to 16 Digits\n\n* features\n* configuration diagram\n* documentation\n* faq\n\n| | | |\n| --- | --- | --- |\n| No | Item | Features |\n| 1. | No. of Doors | 1 Door |\n| 2. | No. of Readers | Max 2 Readers (Plato Readers) – 1 Entry / 1 Exit |\n| 3. | Wiegand / ABA Reader | Yes – Max 2 |\n| 4. | Connection to PC | IP LAN (10/100 Base-T) / RS485 |\n| 5. | Connection to Readers | RS485 – Plato Reader Series / Wiegand/ABA |\n| 6. | Card Holders | 10,000 (16 Digits) |\n| 7. | Transactions | 50,000 |\n| 8. | Time Setting | 255 Time Sets / 255 Time Zone (No Access Level Limits) |\n| 9. | Holiday | 30 (2 sets) |\n| 10. | Inputs | 5 Supervised/Digital (Switchable) – 1 Door Sensor + 1 Exit Button, 1 Dedicated Fire Alarm Input, 2 Configurable as Reader Tamper, Emergency Breakglass Monitor or General Purpose |\n| 11. | Door Relay Output(s) | 1 |\n| 12. | Extra Relay Output(s) | Yes (1) – Configurable |\n| 13. | Encrypted IP | Yes – AES 128 |\n| 14. | Global Anti-Passback | Yes – Use SNet-GAC |\n| 15. | Real Time Clock | Yes – with On Board Battery |\n| 16. | WAN Support | Yes – Support Dynamic IP |\n| 17. | Power Fail Monitor | Yes – with Power Level Monitoring |\n| 18. | Firmware Upgrade | Download from Software |\n| 19. | Diagnostic | Yes – Using Built in Web Browser |\n| 20. | Onboard LED Indicators | Yes – Input, Output, Run, Diagnostic, Error |\n| 21. | Onboard Buzzer | Yes |\n| 22. | Use with other MicroEngine controllers | Yes |\n| 23. | Processor | Microchip PIC32 – 32 bit RISC MCU at 80 MHz |\n| 24. | Memory | Program (FLASH: 512KB); DATA (EEPROM: 128KB, FLASH: 4MB) |\n| 25. | PCB Board Dimension | 160mm (L) x 80mm (W) |\n| 26. | Casing Dimension | 235mm (H) x 227mm (W) x 75mm (D) |\n| 27. | Power Consumption | Typically 400mA (Controller board only) |\n\n\n\n#image\_1550558449 {\nwidth: 100%;\n}\n\n| | |\n| --- | --- |\n| No | Documentation |\n| 1. | PDF-Icon Product Brochure: XP-M1000i |\n\n1. I have purchased XP-M1000i and I need to…\n\n* To install the controller, follow the wiring connection diagram provided, see article ID: AA-00363\n* To configure the uplink connection, see article ID: AA-00206 if using network connection, or see article ID: AA-00319 if using RS485 connection\n\n \n\n2. I have installed XP-M1000i at my site, but how do I configure the controller?\n\n* To reset the controller to factory default setting (Coldstart), see article ID: AA-00303\n* How to use Auto PIN only to access the door, see article ID: AA-00204\n* How can I use Card+Pin Mode, see article ID: AA-00325\n\n \n\n3. Troubleshooting Guide\n\n* Problem to set the address number for reader and controller, see article ID: AA-00332\n* What is the default IP address for the XP-M1000i controller, see article ID: AA-00336\n\nmore support information
