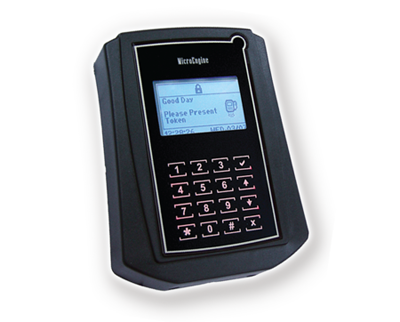

Description\n\n* Reader with Touch Sense Keypad\n* Built-in LCD Screen\n* Built-in Controller & LAN\n* Support Programming through Keypad & LCD at the reader\n\n* Features\n* PC Requirements\n* FAQ\n\n| | | |\n| --- | --- | --- |\n| | Features | Functions |\n| 1. | Card User Memory | 1,200 |\n| 2. | Transaction Records | 10,000 |\n| 3. | Single Unit Reader, Keypad & Controller | Yes |\n| 4. | Build-In Card Reader | Yes – EM Card (Mifare Card Model Available) |\n| 5. | Access Operation Mode | Card Only, PIN Only, Card + PIN |\n| 6. | Fingerprint Template Capacity 1:N | No |\n| 7. | Display | 128 x 64 Graphic Display with Back Light |\n| 8. | Keypad | Touch Sense Keypad with Backlight |\n| 9. | Time Set & Time Zone | 99 |\n| 10. | Holiday Dates | 30 |\n| 11. | Auto PIN | Not Available |\n| 12. | Built-in Real Time Clock with Battery | Yes |\n| 13. | Car Park Mode External Entry Reader | No |\n| 14. | Exit Reader | Yes |\n| 15. | Exit Push Button | Yes – with Time Zone Control |\n| 16. | Support Wiegand 26-bit Reader | Yes |\n| 17. | Anti-Passback | Yes |\n| 18. | Controller Operation Mode | Access Control Mode |\n| 19. | Supports Programming Through Keypad & LCD at the Reader | Yes |\n| 20. | Lock Control, Door Sensor & Exit Button Input | Yes – Through MAS-RBS Located Inside the Door |\n| 21. | Configurable Lock Release Time | Yes – 0-99 secs. |\n| 22. | Configurable Door Open Time | Yes – 0-99 secs. |\n| 23. | Auto Lock Release Time Zone | Yes |\n| 24. | Sensor & Output | No |\n| 25. | Data Flash Memory | 32MBit |\n| 26. | Onboard Buzzer | Yes |\n| 27. | Communication Ports | RS485 / LAN |\n| 28. | Can be Linked to PC for Software Control | Yes |\n| 29. | Power | 12VDC |\n| 30. | Dimension | 152mm (H) x 122mm (W) x 32mm (D) |\n\n| | | |\n| --- | --- | --- |\n| No | System | Requirements |\n| 1. | CPU (Recommended) | Intel Core i3-3220, 3.3 GHz or Higher |\n| 2. | RAM (Minimum) | 2 GB (3 GB Recommended) |\n| 3. | OS | Microsoft Win7/Win8 Pro, 2003/2008 Server (Home & Starter Editions Not Supported) |\n| 4. | Microsoft.Net Framework | Yes (Version 3.5) |\n| 5. | Serial Port | Yes |\n| 6. | USB Port | Optional – Required for USB Desktop Reader |\n| 7. | Display (1024 x 768 x 16 Bit Colours) | Yes |\n| 8. | Mouse / Keyboard | Yes |\n| 9. | Hard Disk (Free Space) | 50 GB |\n\n### FAQ\n\n1. I have purchased XP-GTR1200L and I need to…\n\n* To install the controller, follow the wiring connection diagram provided, see article ID: AA-00362\n* To configure the uplink connection, see article ID: AA-00267 if using network connection, or see article ID: AA-00269 if using RS485 connection\n* To configure downlink connection, see article ID: AA-00270\n\n \n\n2. I have installed XP-GTR1200L at my site, but how do I configure the controller\n\n* The meaning of the symbol on the XP-GT/ XP-GTR controller, see article ID: AA-00429\n* To reset the controller to factory default setting (Coldstart), see article ID: AA-00327\n* To enter Programming Menu, see article ID: AA-00272\n* To install new user without the card, and using ID Number as staff identification, see article ID: AA-00314\n* To add fire alarm panel, see article ID: AA-00351\n\n \n\n3. Troubleshooting Guide\n\n* Controller status showing “Down”, see article ID: AA-00271 to check the uplink connection\n* Lock does not release after flash a valid card. See article ID: AA-00362. If problem persists, check the downlink connection. See article ID: AA-00270\n* Can XP-GTR1200L read Mifare card? No, it cannot read Mifare card. Further information, see article ID: AA-00431\n* The controller status (LAN) always switch up to down frequently, see article ID: AA-00337\n* User can exit from entrance door when the door have been blocked, see article ID: AA-00360\n\nXP-GT / GTR Setup Guide (Network Settings)\n\nmore support information
