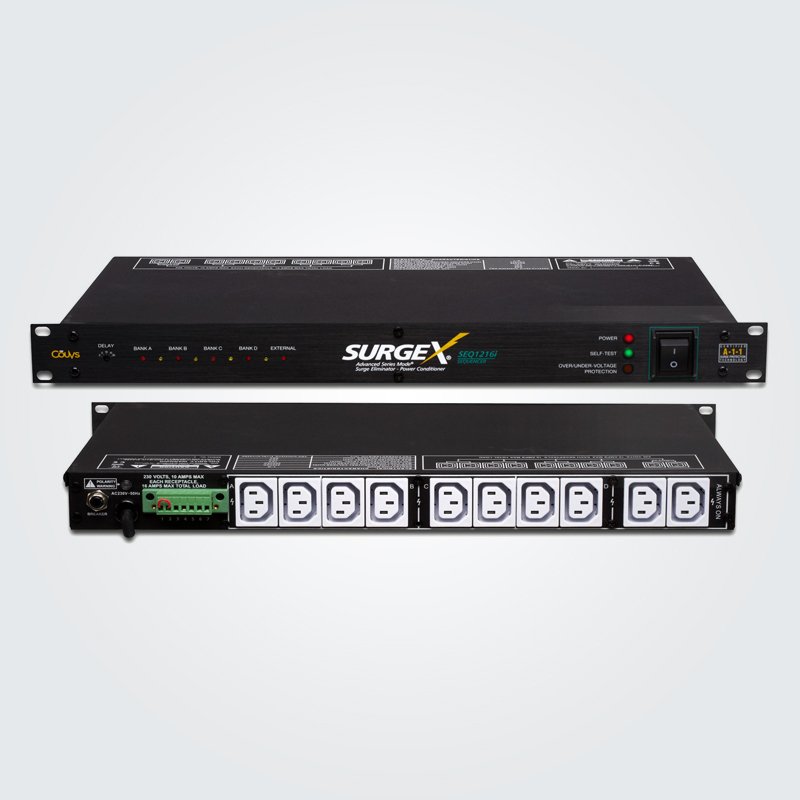

SurgeX SEQ-1216i — Power Sequencer 16A / 240V
Power Sequencer 16A / 240V — 10 IEC/CEE 7/7 outlets. 19-inch rack. Sequential power on/off for AV equipment, with Series Mode surge protection.
Technical Specifications
| Model | SEQ-1216i |
| Product line | SEQ — Power Sequencer |
| Rated voltage / current | 16A / 240V |
| Input power connector | CEE 7/7 plug (Schuko), 16A |
| Output outlets | 10 IEC/CEE 7/7 outlets: 2 always-on outlets + 4 programmable banks |
| Mounting type | 19-inch rack, 1U high |
| Protection technology | Advanced Series Mode (clamping & hold — per manufacturer: eliminates surges up to 6,000V, no sacrificial components) |
| Control / monitoring | Configured directly on the unit; 1 "virtual bank" for cascading control of other devices (unlimited expansion) |
Detailed Description
The SEQ is SurgeX's power sequencer combined with surge protection: it switches groups of equipment on and off in the correct order and with configurable delays, while blocking surges with Advanced Series Mode. It features 2 always-on outlets and 4 programmable banks, plus 1 "virtual" bank for controlling other cascaded SEQ units.
Key features
- Power-on in sequence (processor/preamp first, amplifiers last), power-off in reverse order
- Staggered turn-on times → prevents cumulative inrush current from tripping the breaker
- Advanced Series Mode + Impedance Tolerant EMI/RFI filtering (both line–neutral and common–ground modes)
- ICE: inrush current elimination; COUVS: automatic shutdown on severe over/under-voltage
Protects: Amplifiers, processors and source devices in AV racks — preventing loud "pops" through the speakers and breaker trips when powering up the whole system.
Installation: 19-inch rack, 1U high.
Control: Configured directly on the unit; 1 "virtual bank" for cascading control of other devices (unlimited expansion).
Protection technology: Advanced Series Mode (clamping & hold — per manufacturer: eliminates surges up to 6,000V, no sacrificial components).
Specifications and performance per SurgeX (AMETEK ESP) manufacturer documentation. AZ Technologies is an official Dealer — contact us for advice on the right model and a quotation.
