MXNet 10G Control Box-AC-MXNET-10G-CBOX
Product code: AC-MXNET-10G-CBOX
Web based – Apache Web Server Works with any multicast capable managed 3rd party switch MXNet Mentor pre-installed SKU: AC-MXNET-10G-CBOX
Technical Specifications

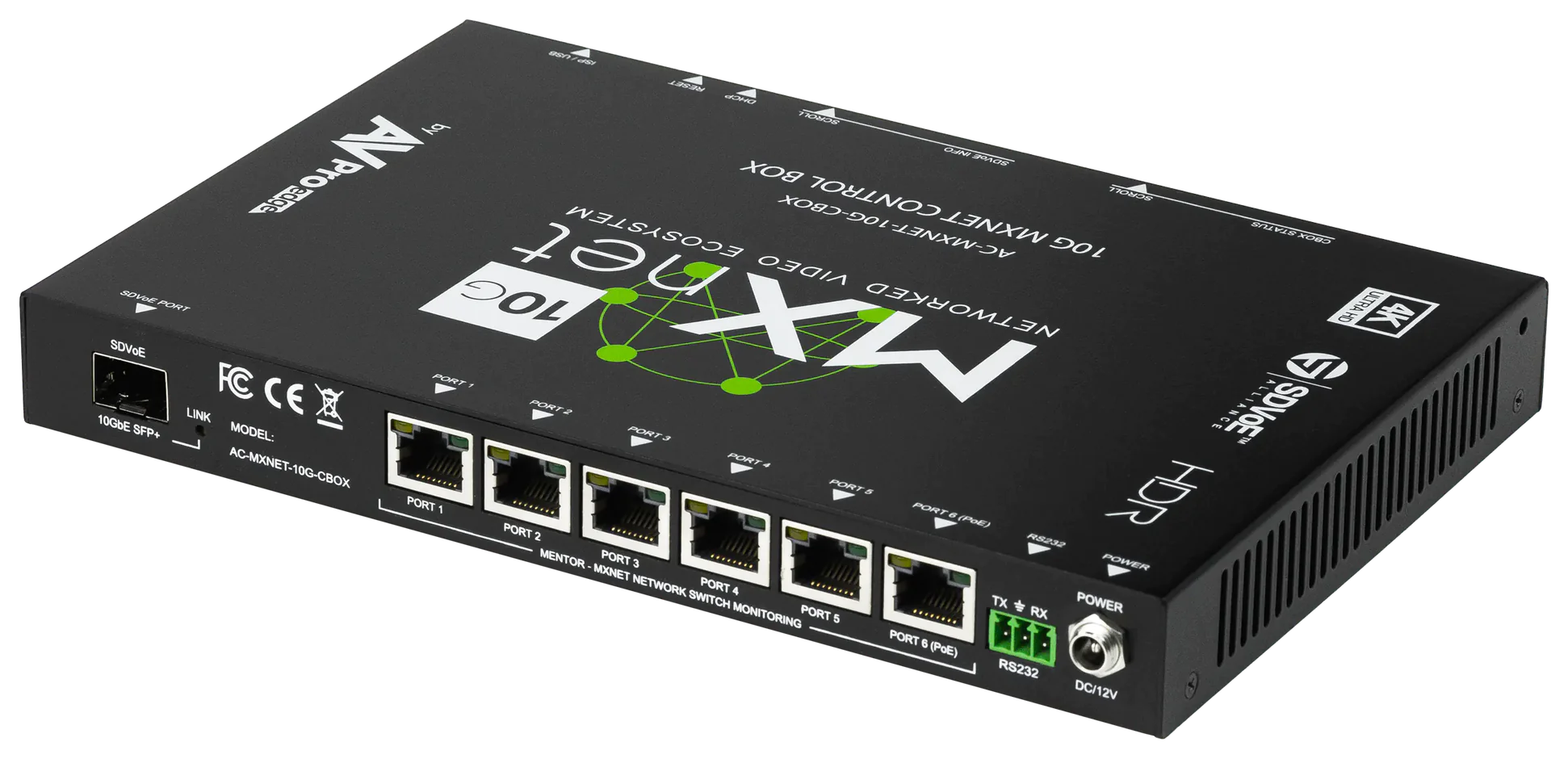

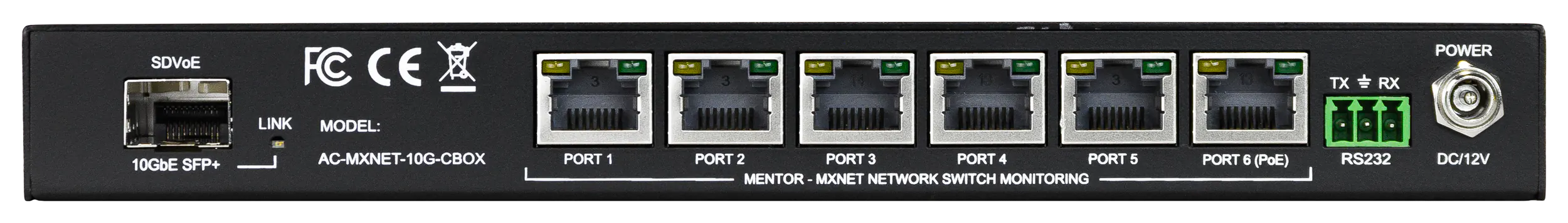

| Ethernet | (6) 10/100/1000 base-T, half/full duplex (auto detect), RJ-45 female ports (port 6 is a POE port) for MXNet System Control and third-party control |
| SFP+ | (1) 10G SFP+ port used for MXNet SDVoE streams and input preview |
| HDMI | N/A |
| Audio | N/A |
| IR | N/A |
| RS232 | (1) × 3 Pin Terminal Block for MXNet System Control |
| USB | (1) USB Type-C for MXNet Service |
| Ethernet | 100 Meters/330 Feet over CAT5e |
| SFP+ and Fiber | 10G SFP+ DAC cable up to 1 meters, 10G SFP+ AOC cable up to 3 meters, 10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters 10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers |

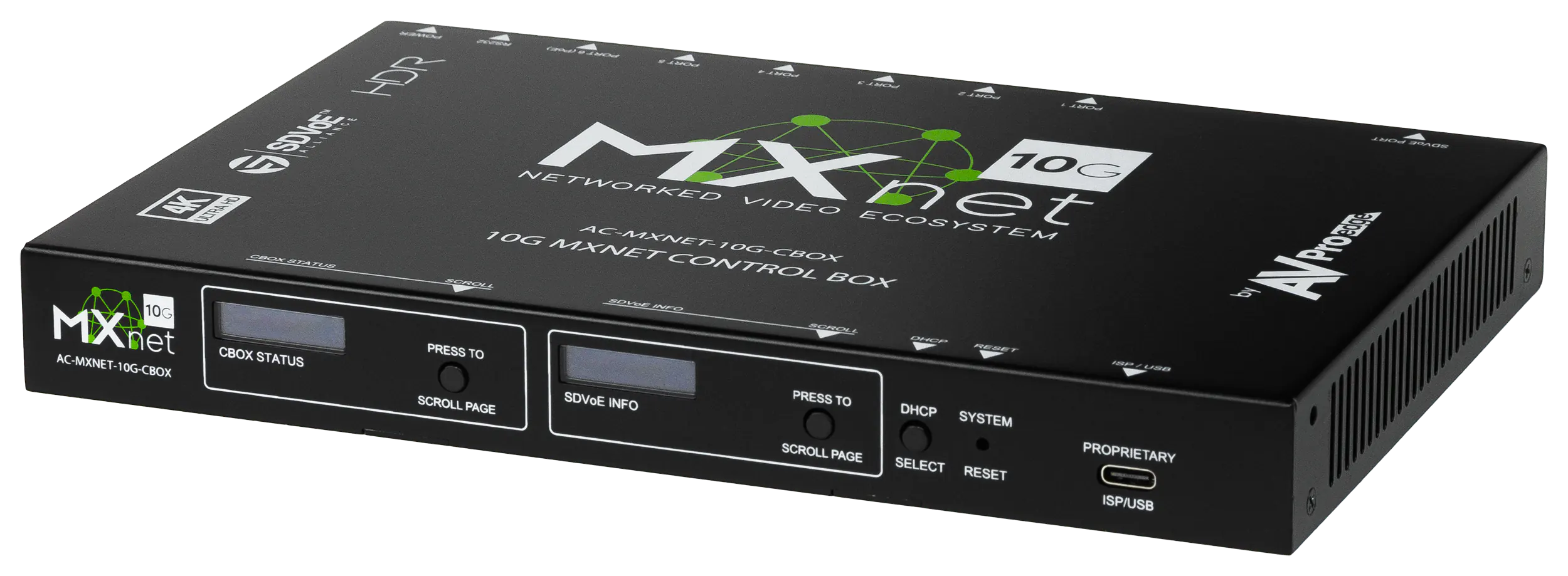

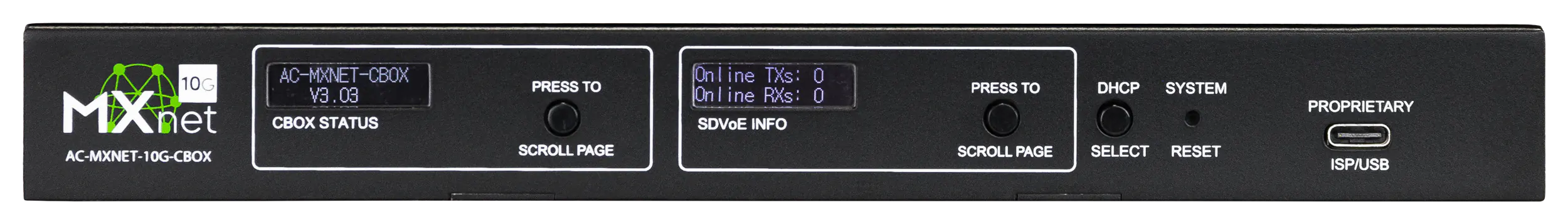

| OLED Displays | (2) one for CBOX status and one for SDVoE information |
| OLED Display Size | 23mm × 6mm |
| OLED Display Resolution | 128 × 32 Pixels |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 5-90% RH (No Condensation) |
| Power Consumption | 8.1W |
| PoE (Power over Ethernet) | IEEE 802.3af (15.4W) |
| Power Supply Unit | Input: AC 120-240V, 50/60Hz, 0.8A Output: DC 12V, 2A |
| Thermal dissipation | 27.7 BTU/hr |
| Mounting | Rack and Furniture mount support |
| Dimensions (Unit) | mm: 215 × 140 × 25 inch: 8.46 × 5.51 × 0.98 |
| Dimension (Packaged) | mm: 310 × 180 × 54 inch: 12.2 × 7.09 × 2.13 |
| Weight (Unit) | 1.76 lbs./0.8 kg |
| Weight (Packaged) | 2.18 lbs./0.99 kg |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
Detailed Description

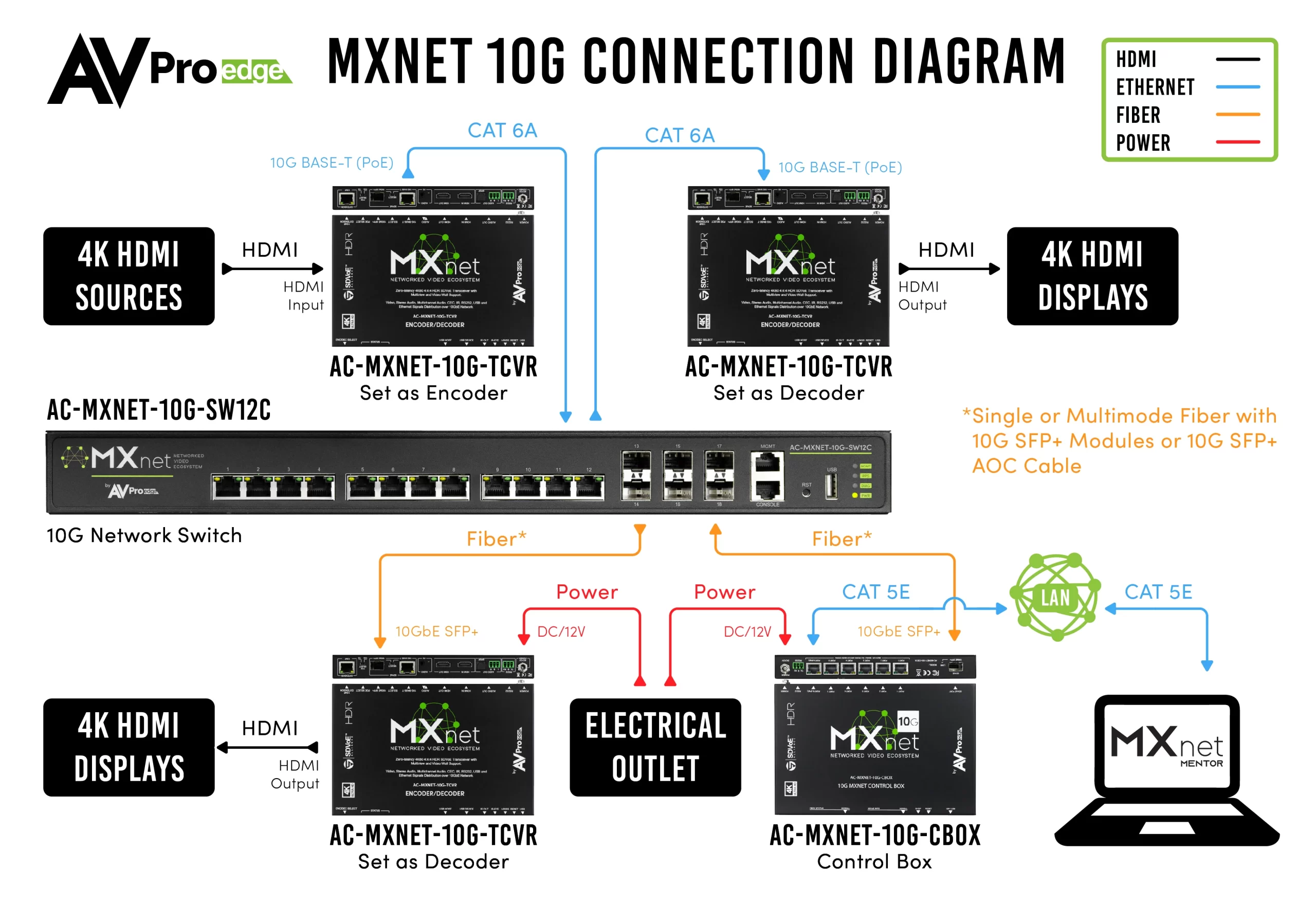

The AC-MXNET-10G-CBOX serves as the central control unit for the SDVoE AV over IP ecosystem. Pre-installed with MXNet Mentor software, it enables efficient system configuration, resource management, device customization, and operational status diagnostics.
