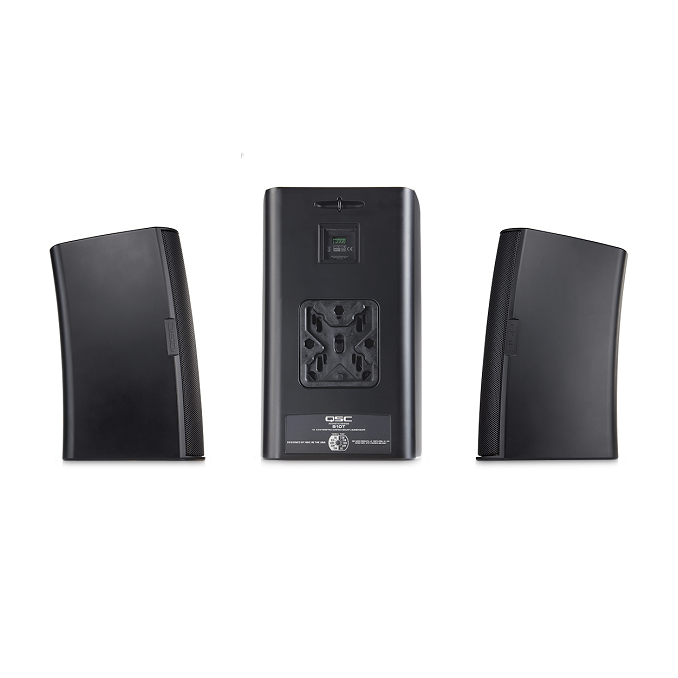

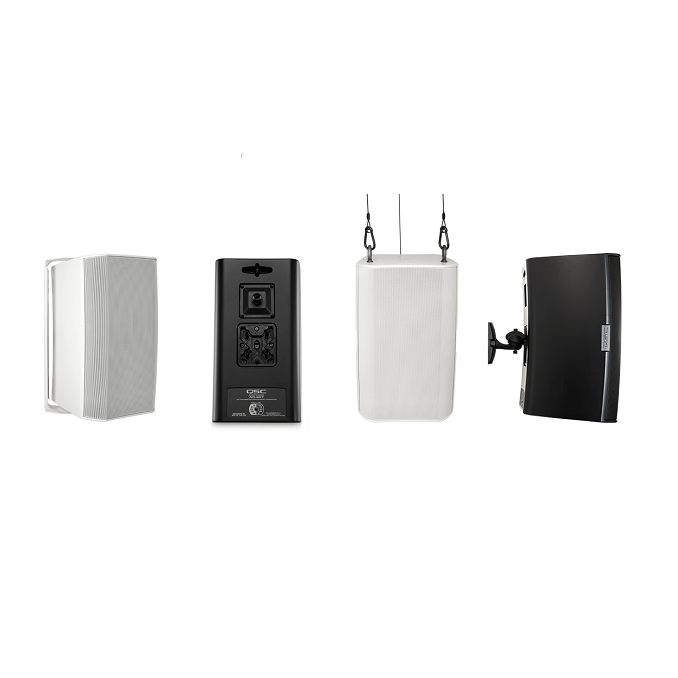

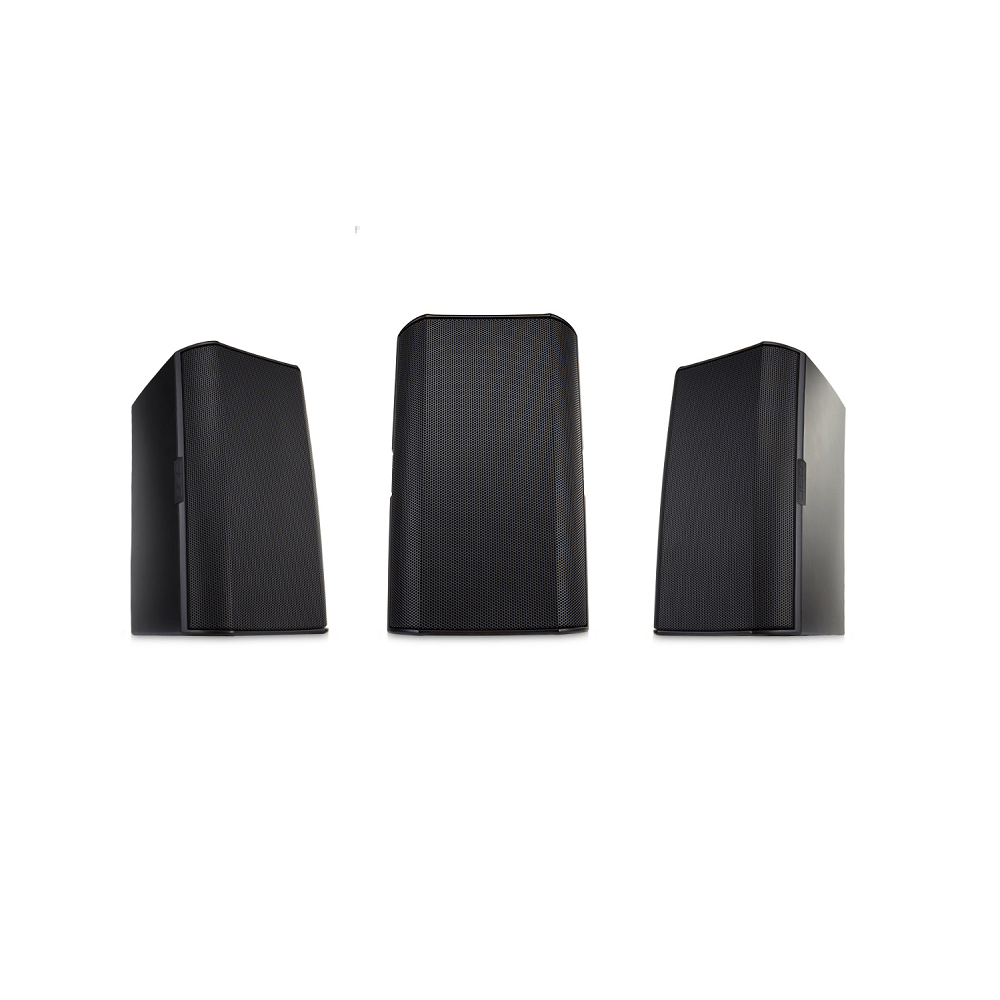

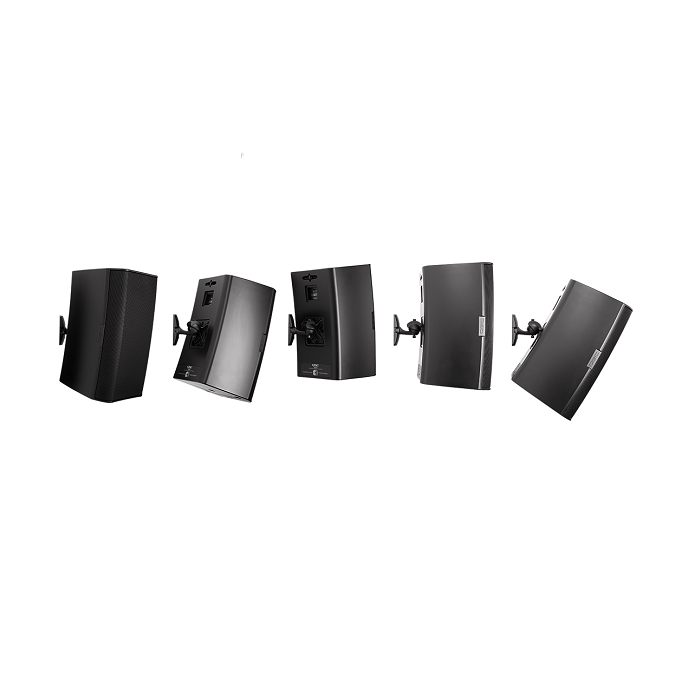

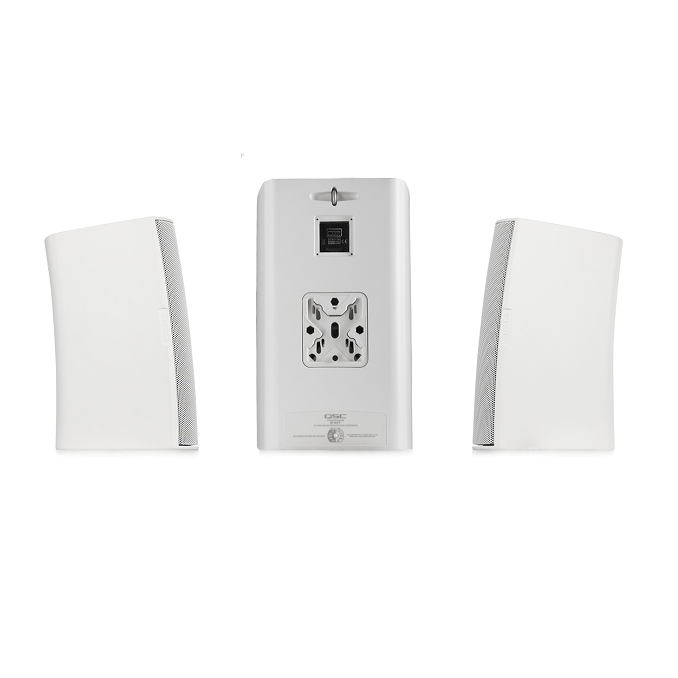

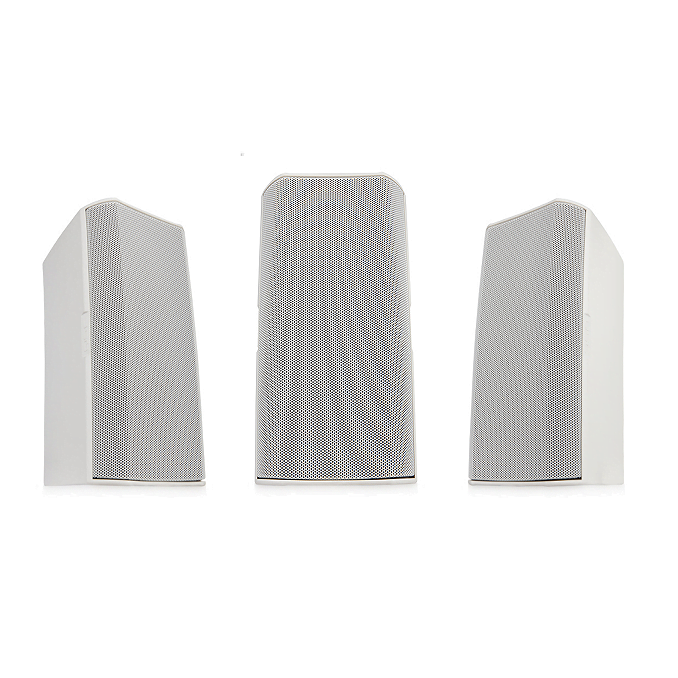

Loa gắn tường 2-way, 10″, 250W, QSC AD-S10T

\n\n# Features\n\n* 10-inch weather treated woofer; 1.4-inch compression driver\n* 90° conical DMT™ coverage\n* 100 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass\n* Maximum peak SPL 122 dB (8 ohm bypass)\n* Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area\n* X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility\n* Advanced Intrinsic Correction™ voicings available via Q-SYS™\n* Lightweight ABS enclosures offer long-term durability and lasting good looks\n* Sealed input panel cover and powder coated aluminum grilles for added weather resistance\n* Meets IEC60529 IP-54 for dust and splash resistance\n* Available in black (RAL 9011) or white (RAL 9010)\n* Complete EASE, CF2, CAD, and BIM information available online\n\n| System Details | AD-S10T |\n| --- | --- |\n| Effective frequency range1 | 50 Hz – 19 kHz |\n| Rated noise power / voltage2 | 250 watts / 45 volts (rms) |\n| Broadband sensitivity3 | 92 dB SPL |\n| Coverage angle (-6 dB) | 90° conical DMT™ |\n| Directivity factor (Q) | 10 |\n| Directivity Index | 10 dB |\n| Maximum continuous SPL4 | 116 dB |\n| Maximum peak SPL4 | 122 dB |\n| Rated impedance | 8 ohms |\n| Recommended amplifier power (loudspeaker “program” power) | 500 watts |\n| Transformer taps | 70 V: 100, 50, 25, 12.5 W and 8Ω bypass 100V: 100, 50, 25 W and 8Ω bypass |\n| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |\n| LF transducer | 10-inch weather resistant paper cone woofer 2.5-inch / 64 mm voice coil |\n| Input connector type | Euroblock connector with parallel output terminals |\n| Enclosure material | Painted ABS polymer |\n| Grille material | Powder coated aluminum |\n| X-Mount material | Powder coated aluminum |\n| Enclosure Details | |\n| Ingress protection | IP-54 |\n| Operating environment | Designed for indoor and outdoor use |\n| Testing | The AD Series loudspeakers qualified for outdoor use using the following tests: * Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. * Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days * High and low temperature: tested to QSC internal standards between -20° and 50° C |\n| Net weight | 31 lb / 15 kg |\n| Product dimensions (HWD) inches | 20.3 × 12.5 × 11.7 |\n| Product dimensions (HWD) mm | 516 × 318 × 298 |\n| Shipping weight | 40.6 lb / 18.45 kg |\n| Shipping dimensions (HWD) inches | 31.7 × 16.1 × 16.1 |\n| Shipping dimensions (HWD) mm | 805 × 409 × 409 |\n| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |\n| Optional accessories | YMS10T yoke mount, M10 Kit-C |\n| 1 Free-field, -10 dB from on-axis sensitivity 2IEC60268-1 noise signal for 2 hours 3On-Axis, free-field sensitivity, 2.83V, 1 m 4Calculated from rated noise voltage and sensitivity | |
