Description:

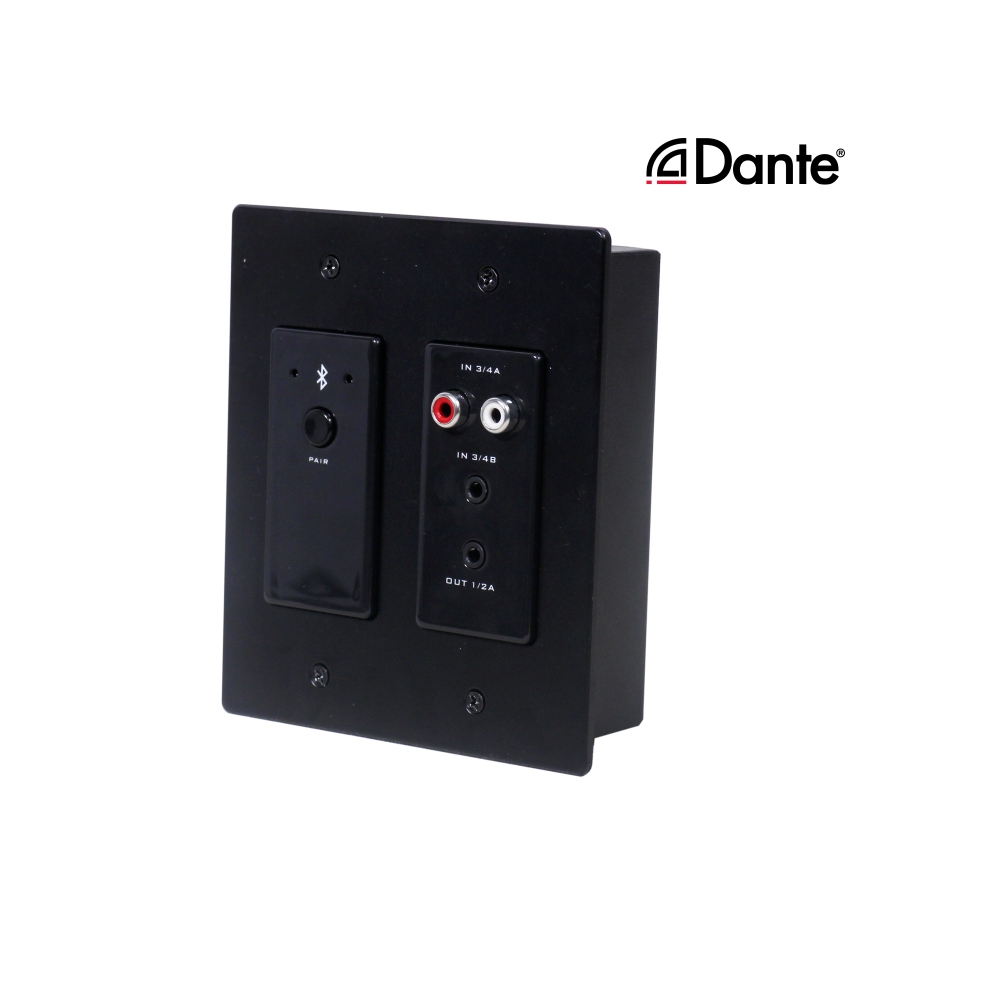

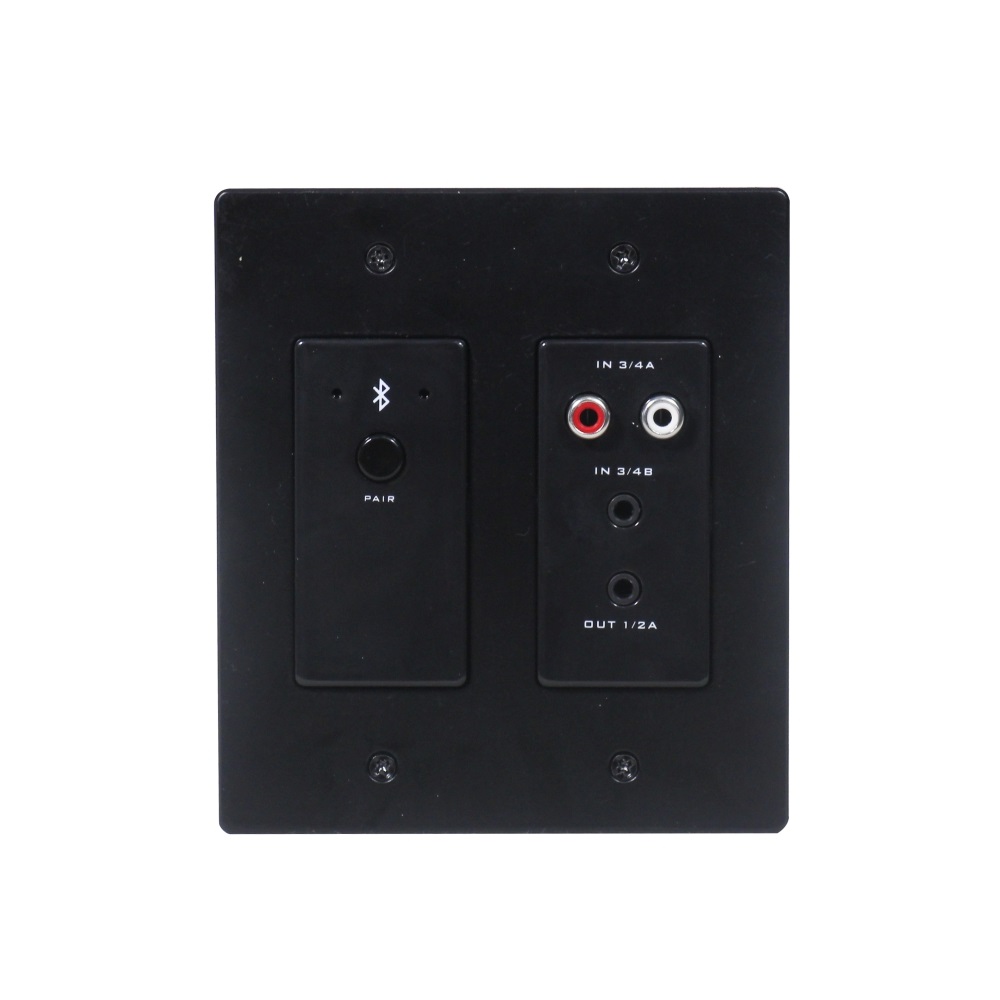

Dante BW 0404 is a wall panel designed for signal conversion among analog, Bluetooth, and Dante networks. It is widely used in teleconferencing, long-distance audio transmission, and other applications.

Key Features:

• CAT5/6 connector for Dante network connectivity, controlled by Audinate

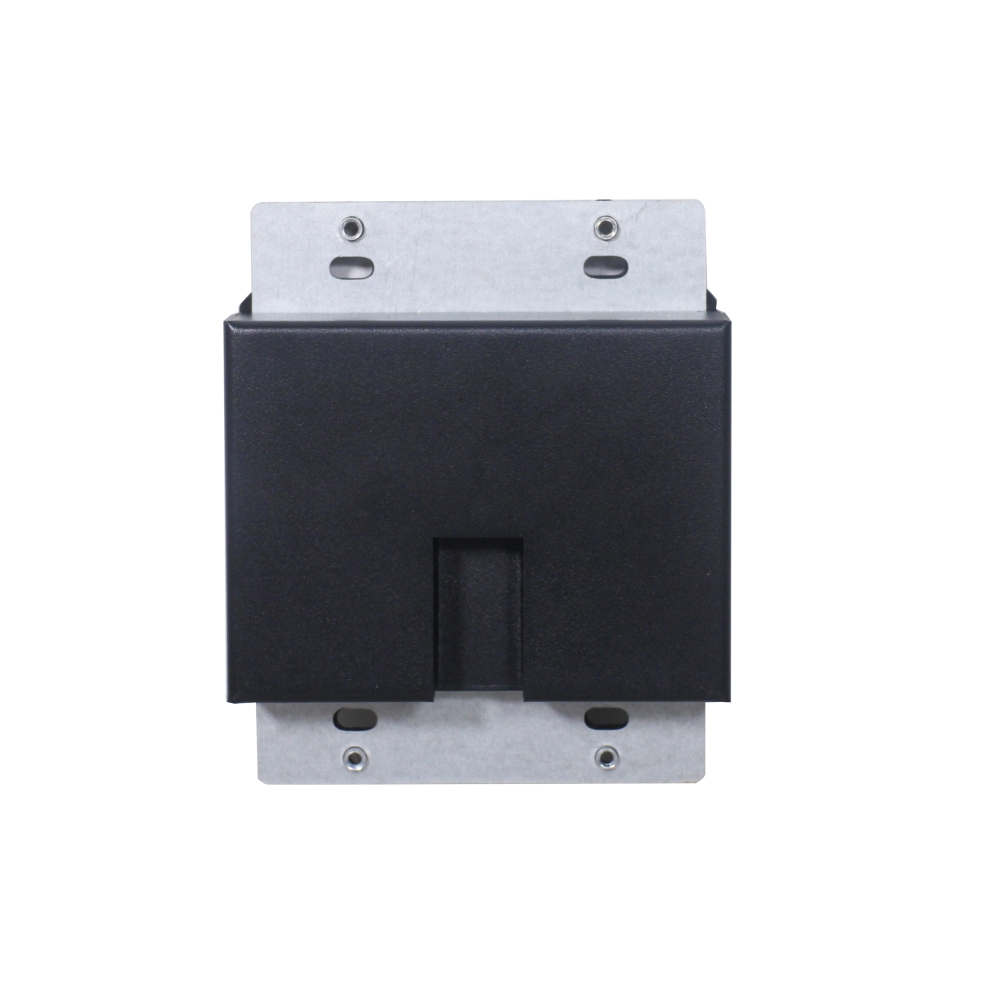

• Compact design with an integrated mounting bracket for installation in tight spaces

• Advanced Bluetooth V5.0 technology

• One-touch Bluetooth pairing via a dedicated button

• Compatible with a wide range of mobile phones, tablets, computers, and other devices

• Equipped with RCA and 3.5mm TRS stereo inputs, with TRS priority

• Features one 3.5mm TRS stereo output

• Supports PoE (Power over Ethernet) power supply

• Combines power supply and audio transmission into a single unit

• Built-in Bluetooth call bridge function for conferencing applications

• Converts 1 Bluetooth audio signal to 2 Dante network audio channels

• Converts 1 AUX or 3.5mm stereo jack input to 2 Dante network audio channels

• Receives Dante network audio signals via the local 3.5mm jack
