AVPRO EDGE
ConferX 4K 6×2 Matrix Switcher-AC-CX62-AUHD
Product code: AC-CX62-AUHD
HDMI 2.0 18Gbps Bandwidth Support (HDMI and HDBaseT outputs) Advanced EDID Management Audio Input and Output SKU: AC-CX62-AUHD
Technical Specifications
| Video Resolutions | Up to 4K 60Hz 4:2:0 & 4k30 4:4:4 |
| VESA Resolutions | Up to 2560×2048 (QSXGA) |
| HDR Formats/Resolutions | 4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 BIT (1080), Up to 12 bit (4K) |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted (TOSLINK) | PCM 2.0 Ch, LPCM 6 CH, LPCM 7 CH, Dolby Digital, Dolby Digital Plus |
| Audio Formats Supported Extracted (2CH Port) | PCM 2 CH (No Downmix) |
| Audio Extraction Location | Bind to OUTPUT1 or Bind to OUTPUT2 |
| Audio Delay (Per Output, Extracted) | Up To 630ms |
| AC-CXWP-HDMO-T (10.2 Gbps) | 100 meters 1080p, 70 meters [email protected] Gbps (CAT 6a) |
| AC-CXWP-VGA-T (10.2 Gbps) | 100 meters 1080p, 70 meters [email protected] Gbps (CAT 6a) |
| AC-CXWP-USBC-T (10.2 Gbps) | 100 meters 1080p, 70 meters [email protected] Gbps (CAT 6a) |
| AC-EX70-444-RNE-P (18Gbps) | 100 meters 1080p, 70 meters 4k@18 Gbps (CAT 6a) |
| AC-EX70-UHD-R (10.2 Gbps) | 70 meters 1080p, 40 meters [email protected] Gbps (Cat 6a) |
| AC-EX70-SC2-R (18 Gbps) | 100 meters 1080p, 70 meters 4K@18 GBPS (Cat 6a) |
| Bandwidth HDMI | 18Gbps Uncompressed |
| Bandwidth HDBaseT | (see options under Distance directly above) |
| HDCP | HDCP 2.2 and Earlier |
| POH for Receivers (No need to power receivers) | Yes, all outputs |

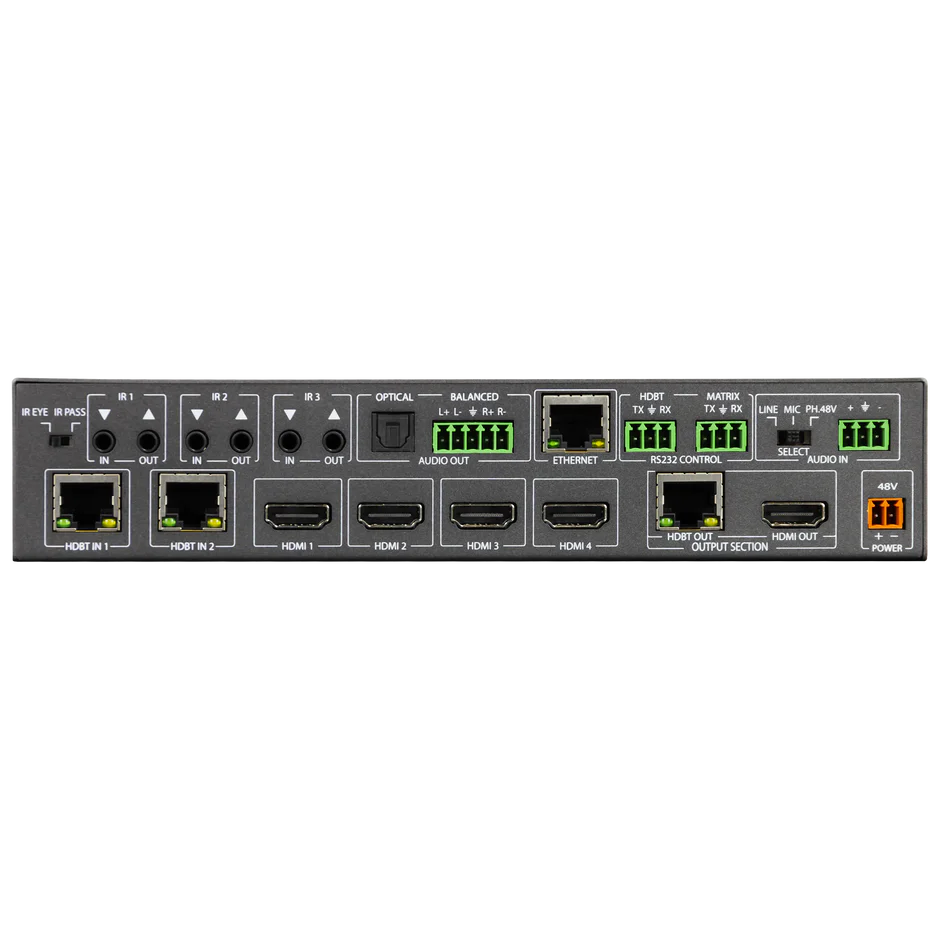

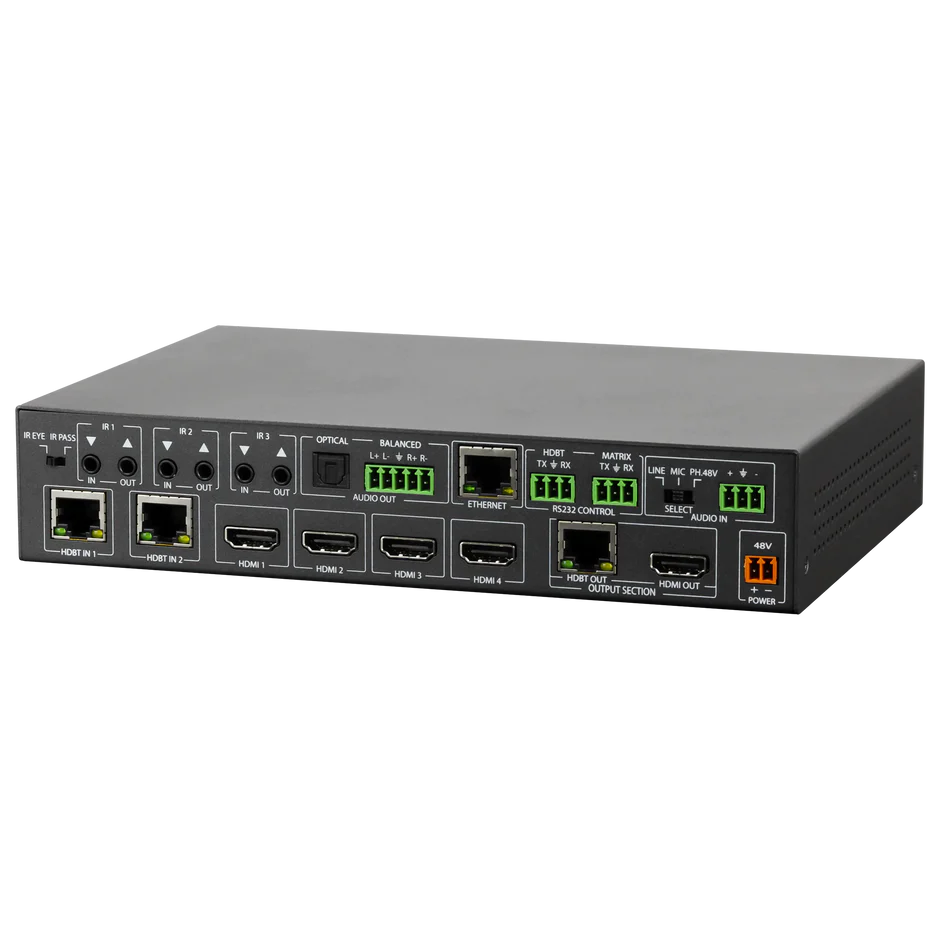

| Ports | LAN, RS-232, IR, Micro USB |
| LAN Web OS | Yes |
| HDMI | Type A |
| LAN | RJ45 w/ Web Interface/ Control |
| Audio (Extracted Digital) | Toslink |
| Audio (Extracted Analog) | 5 Pin Terminal Block (Balanced) |
| IR RX | 3.5mm Stereo (3-Conductor) |
| RS-232 | 3 Pin Terminal Block |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power Consumption (Total) | 12 watts Max |

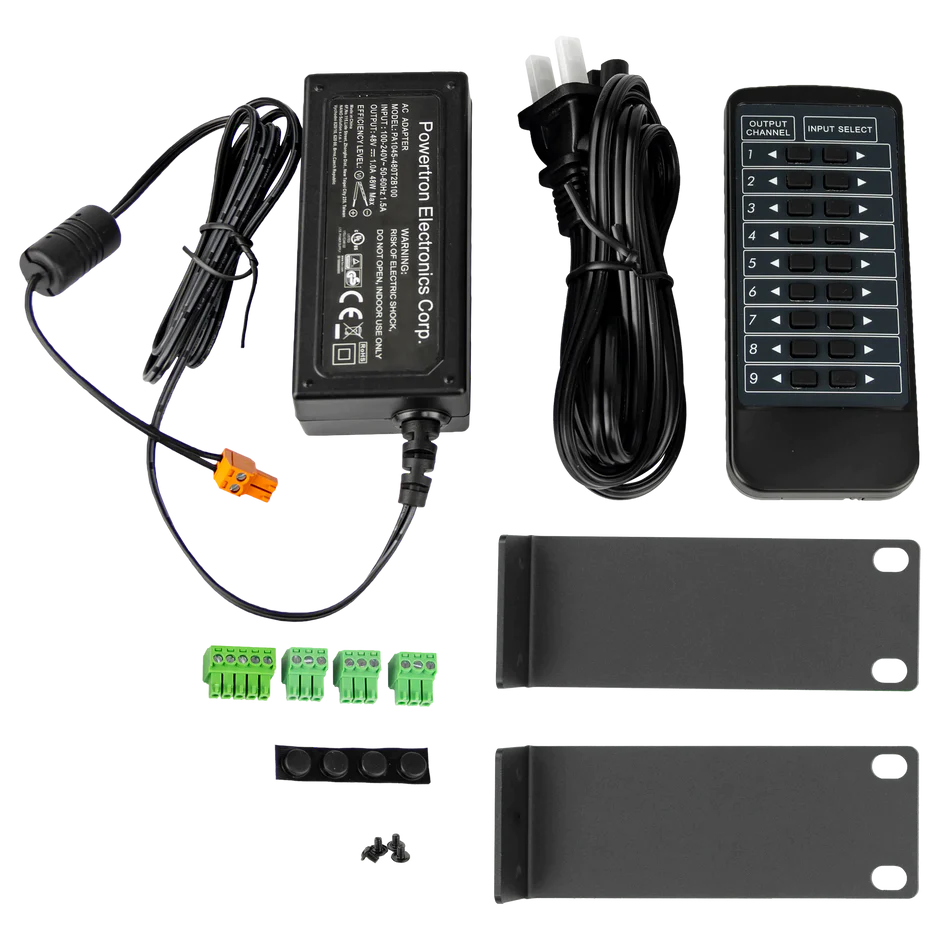

| Power Supply | Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5a |
| Dimensions (Unit Only Length/Depth/height) | mm: 220.7 x 158.8 x 41.4 inch: 8.69 x 6.25 x 1.63 |
| Dimensions (Packaged Length/Depth/height) | mm: 397 x 222 x 95.3 inch: 15.63 x 8.75 x 3.75 |
| Weight (Unit) | 2.4 LBS (1.09 KG) |
| Weight (Packaged) | 3.8 lbs (1.72 Kg) |
Detailed Description
HDMI 2.0 18Gbps Bandwidth Support (HDMI and HDBaseT outputs) Advanced EDID Management Audio Input and Output SKU: AC-CX62-AUHD
