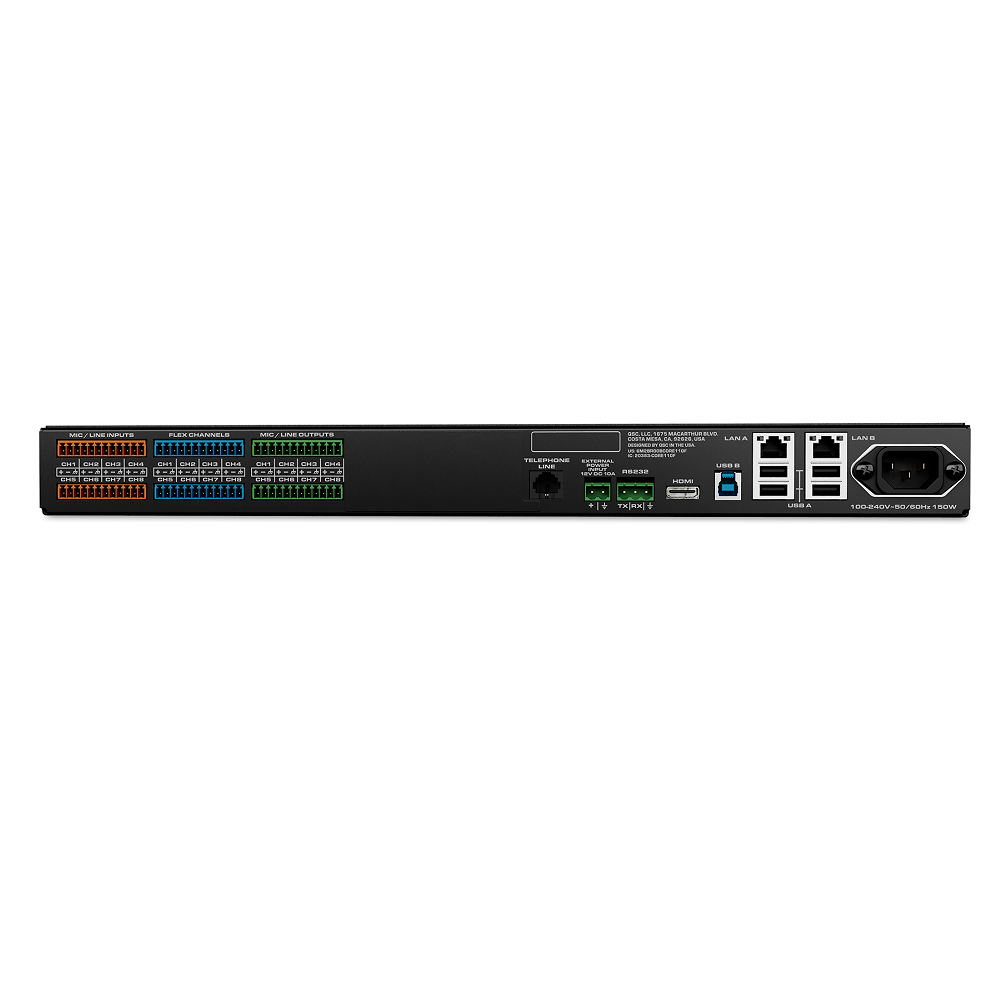

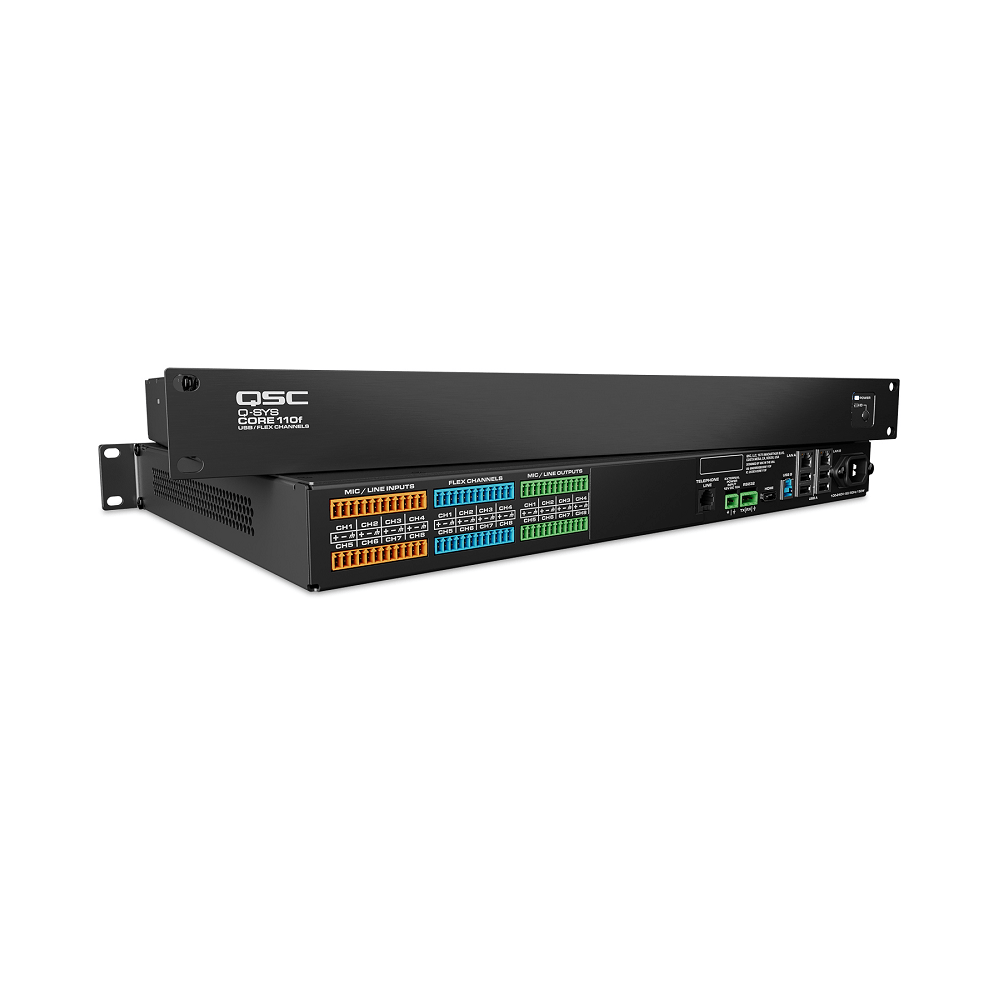

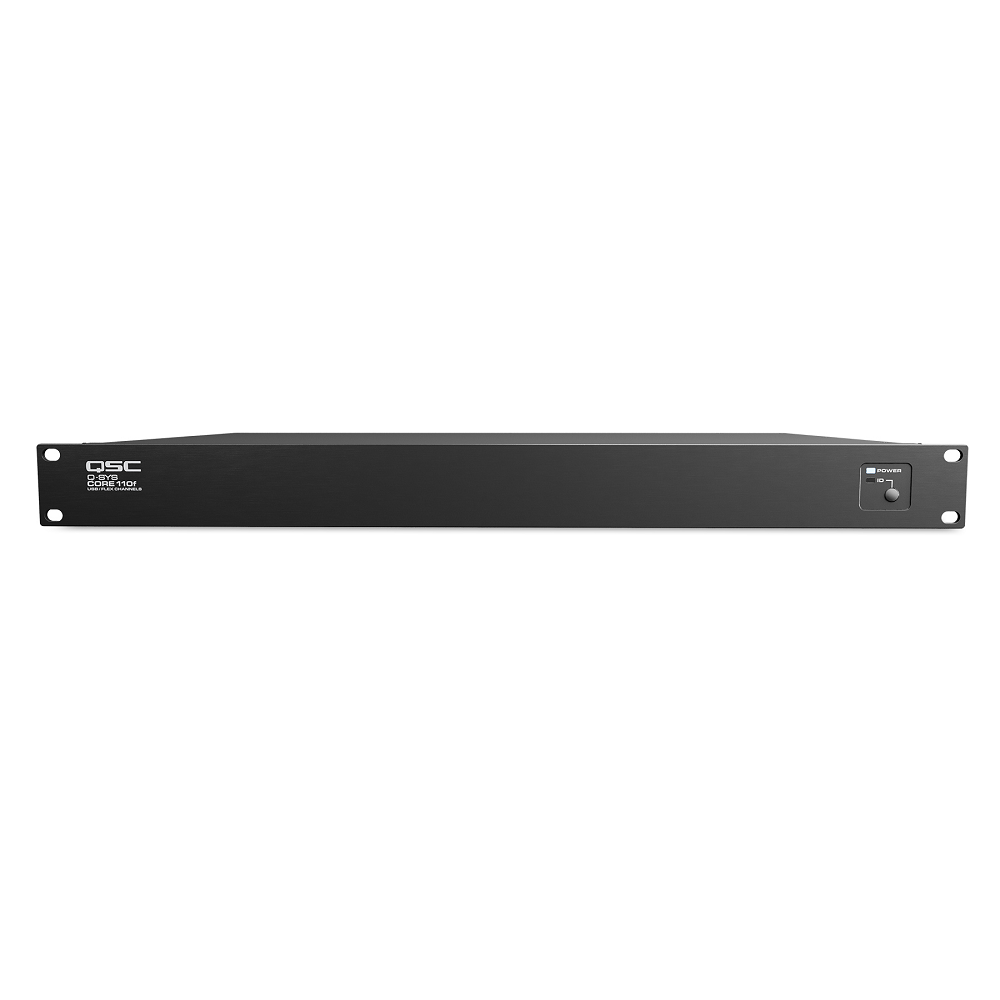

Bộ xử lý trung tâm AV & audio DSP QSC Core 110F v2

The Q-SYS™ Core 110f v2 processor provides a fully integrated audio, video and control solution for installations with a mixture of analog and network channels, supporting medium-sized rooms through the largest Enterprise scale deployments.\n\n \n\n\n### Features & Benefits\n\n* 128 networked audio channels (Q-LAN / AES67)\n* 24 channels of analog I/O, including 8 configurable Flex channels\n* 16x AEC processors\n* Supports up to 4x Q-SYS NM-T1 network microphones\n* Up to 32 x 32 Dante audio channels (8 x 8 included)\n* USB AV bridging (16 x 16 audio + Q-SYS camera support)\n* Full-featured Q-SYS Control engine (with optional feature license)\n* External USB audio device host\n* Up to 4x VoIP instances\n\nClass leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.\n\n8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.\n\nExtend your network I/O connectivity with QIO Series: QIO Series lets you quickly add network I/O connectivity to your Q-SYS systems where it’s most convenient. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO). Learn more.\n\nTrue IT Software Integration: The Q-SYS Operating System is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, as well as the latest software-based security for your AV system like cryptographically signed firmware updates, encrypted data transport and storage.\n\nSuite of Software-Based Conferencing Technology applications: Built by Q-SYS from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing, gating automixers and role-based access controls.\n\nUnified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.\n\n# Specification\n\n| Model                                                                  Core 110f | |\n| --- | --- |\n| Input Frequency Response | |\n| 20Hz to 20kHz @ +21dBu | +0.05dB/-0.5dB |\n| Input THD+N @ 1KHz | |\n| @ +21 dBu Sensistivity & +21 dBu input | < 0.1% |\n| @ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |\n| @ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |\n| @ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |\n| @ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |\n| EIN (no weighting, 20Hz to 20kHz) | < -121dB |\n| Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |\n| Input Dynamic Range | |\n| @ +21 dBu Sensitivity | > 109.5dB |\n| @ +10 dBu Sensitivity | > 106.4dB |\n| @ -10 dBu Sensitivity | > 104.6dB |\n| @ -39 dBu Sensitivity | > 104.6dB |\n| Input Common Mode Noise Rejection | |\n| @ +21 dBu Sensitivity | |\n| @ +10 dBu Sensitivity | 56.5 |\n| @ -10 dBu Sensitivity | 73.2 |\n| @ -39 dBu Sensitivity | 63.2 |\n| Input Impedance (balanced) | 5K Ohms Nominal |\n| Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |\n| Phantom Power | +48v DC, 10mA per input max |\n| Sampling Rate | 48kHz |\n| A/D – D/A Converters | 24-bit |\n| Overall Dimensions/Weight | Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device Weight: 5 kg (11 lb) Shipping Height: 152 mm (6 in) Shipping Width: 584 mm (23 in) Shipping Depth: 356 mm (14 in) Shipping Weight: 5.6 kg (12.4 lb) |\n| Output Frequency Response | |\n| 20Hz to 20kHz @ all settings | +0.2/-0.5 dB |\n| Output THD | 0.003%, +10 dBu Max output level |\n| Output Crosstalk @1khZ | >100dB Typical, 90dB max |\n| Output Dynamic Range | >108dB |\n| Output Impedance (balanced) | 220 0hms |\n| Output Level Range : (1dB Steps) | -39 dBu min to +21 dBu max |\n| USB B | |\n| Bit Depth | Selectable 16-bit, 24-bit |\n| Number of Channels | up to 16 × 16 |\n| Sample Rate | 48kHz |\n| Environmental | |\n| Power Consumption | 60 watts, typical. 120 watts max |\n| BTU/Heat load: | 205 BTU/Hour |\n| General | |\n| Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe) |",name:
