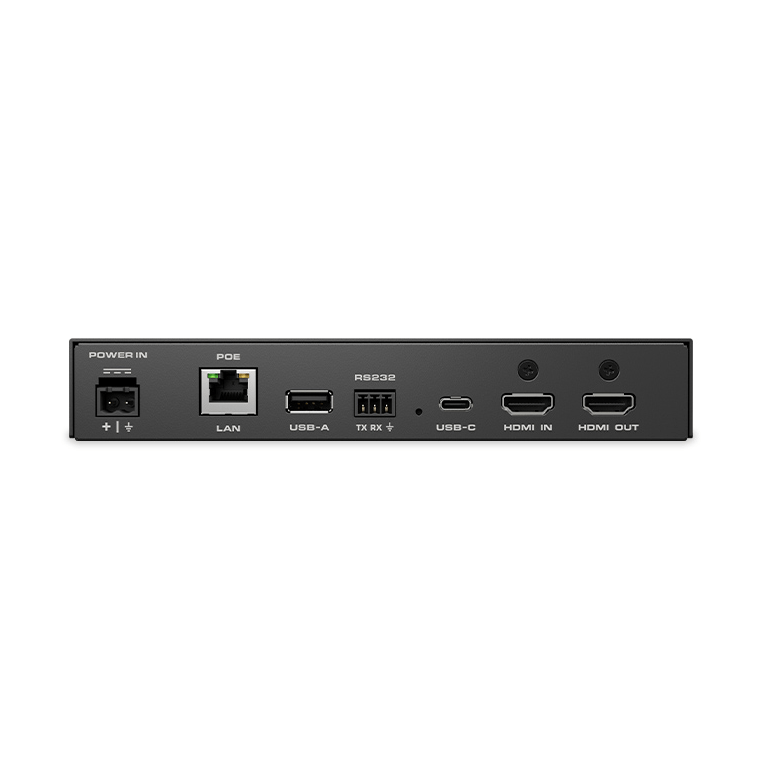

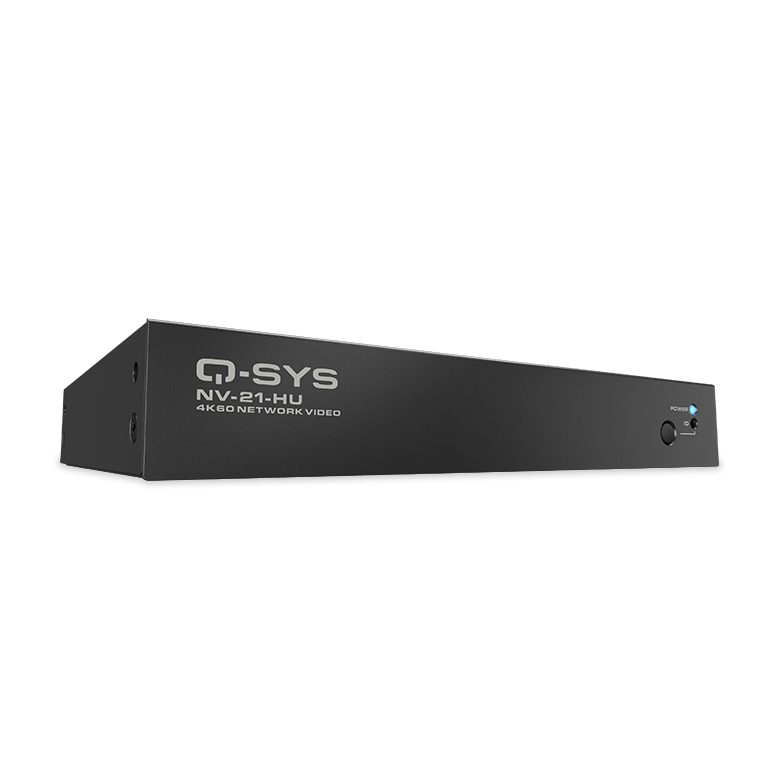

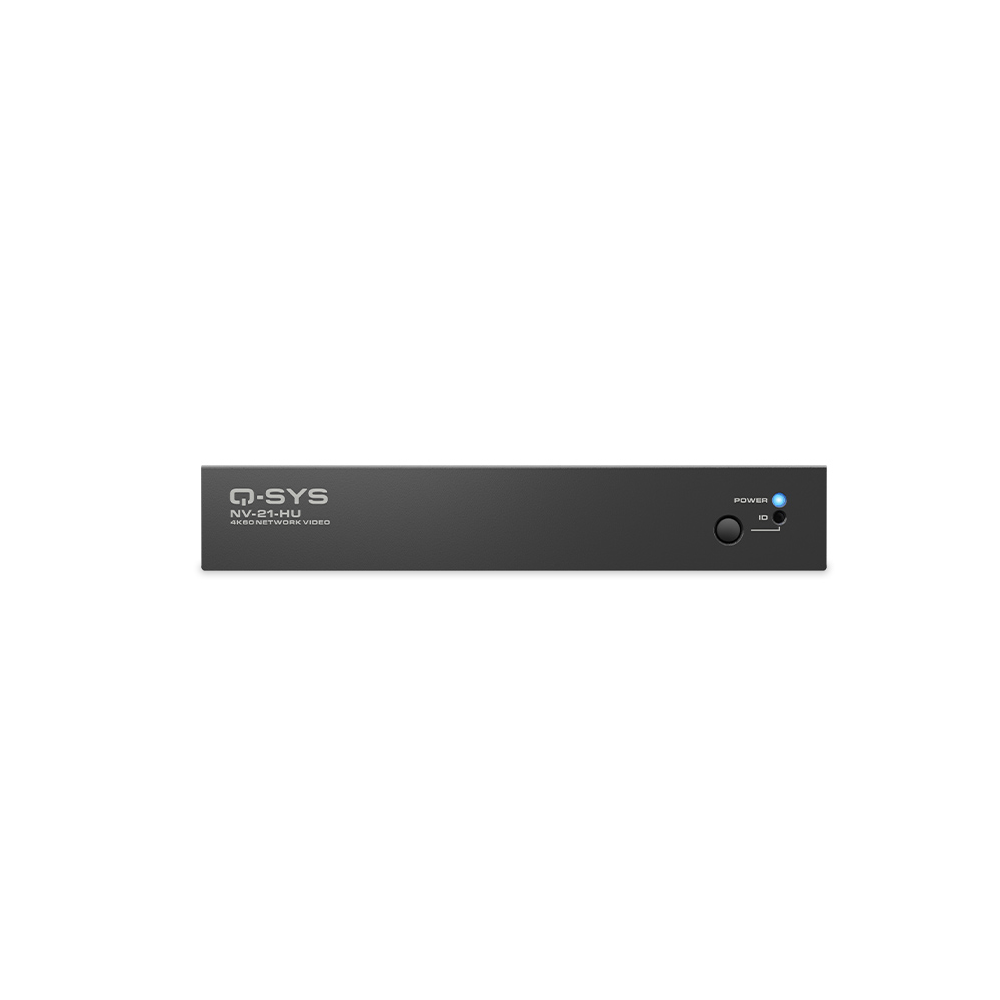

Bộ Network Video Endpoints (encoder/decoder) QSC NV-21-HU

The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C. The NV-21-HU’s compact size and reduced I/O make it ideal for supporting meeting rooms, learning spaces, hospitality and entertainment installations. The NV-21-HU can be used alongside other Q-SYS NV Series video endpoints, providing system design flexibility. Like all Q-SYS products, the NV-21-HU offers native integration and control, simplifying configuration and operation.\n\n* Encoder\n* Decoder\n\n\n\n#image\_1792703502 {\nwidth: 100%;\n}\n\n\n\n#image\_1999350679 {\nwidth: 100%;\n}\n\n# Application Diagrams\n\n* Small Meeting Room\n* Meeting Room\n* Lecture Hall\n* Restaurant\n\n\n\n#image\_1953074737 {\nwidth: 100%;\n}\n\n\n\n#image\_269742987 {\nwidth: 100%;\n}\n\n\n\n#image\_647738750 {\nwidth: 100%;\n}\n\n\n\n#image\_1773596636 {\nwidth: 100%;\n}\n\n# Specifications\n\n| | |\n| --- | --- |\n| Video I/O | |\n| HDMI 2.0 inputs | 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 |\n| USB-C Input | 1x USB 3.2 Gen 1×1 (5Gbps) Type-C Device Port – Supporting DisplayPort Alt-Mode (DP 1.4 Sink) – capable of receiving input video formats up to 4K60 4:4:4 |\n| HDMI 2.0 Output | 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4 |\n| Scaler | HDMI output features a robust 4K60 4:4:4 scaler that can accomodate the most challenging resolution and frame rate conversions. |\n| Audio I/O | |\n| HDMI inputs | 8-channel PCM audio, Q-SYS routable |\n| USB Type C input | 8-channel PCM audio, 1×1 speakerphone1, 2×2 soundcard1, Q-SYS routable |\n| HDMI outputs | 8-channel PCM audio, Q-SYS routable |\n| General | |\n| Dimensions | 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) |\n| Weight | 1.75 lbs (794 g) |\n| Mounting options | Flexible surface mounting hardware included |\n| Others | |\n| USB Type C input | USB 3.2 Gen 1×1 (5Gbps) Type-C Device Port – Supporting DisplayPort Alt-Mode (DP 1.4 Sink) – USB Power Delivery up to 65W3 |\n| USB Type A input | USB HID Routing – 5 V DC 900 mA |\n| LAN | 1000BASE-T, 2.5GBASE-T compliant |\n| Power Over Ethernet | PoE Type 3, Class 5 (40W at PD, 45W at PSE)2 |\n| Auxiliary Power Supply | 12V DC 9 A Power Supply. NV-21-PSU sold separately.3 |\n| Environmental | |\n| Ambient operating temperature range | 0° to 40° C |\n| Humidity | 5 to 90 RH % non-condensing |\n| Storage temperature | -20° to 70° C |\n| Expected Product lifecycle | 10 years |\n\n1. ##### Requires Q-SYS AV Bridging feature license 2. When powered via PoE, the NV-21-HU cannot charge devices over the USB-C connection 3. An external power supply is required for any device charging over the USB-C connection.
