AVPRO EDGE

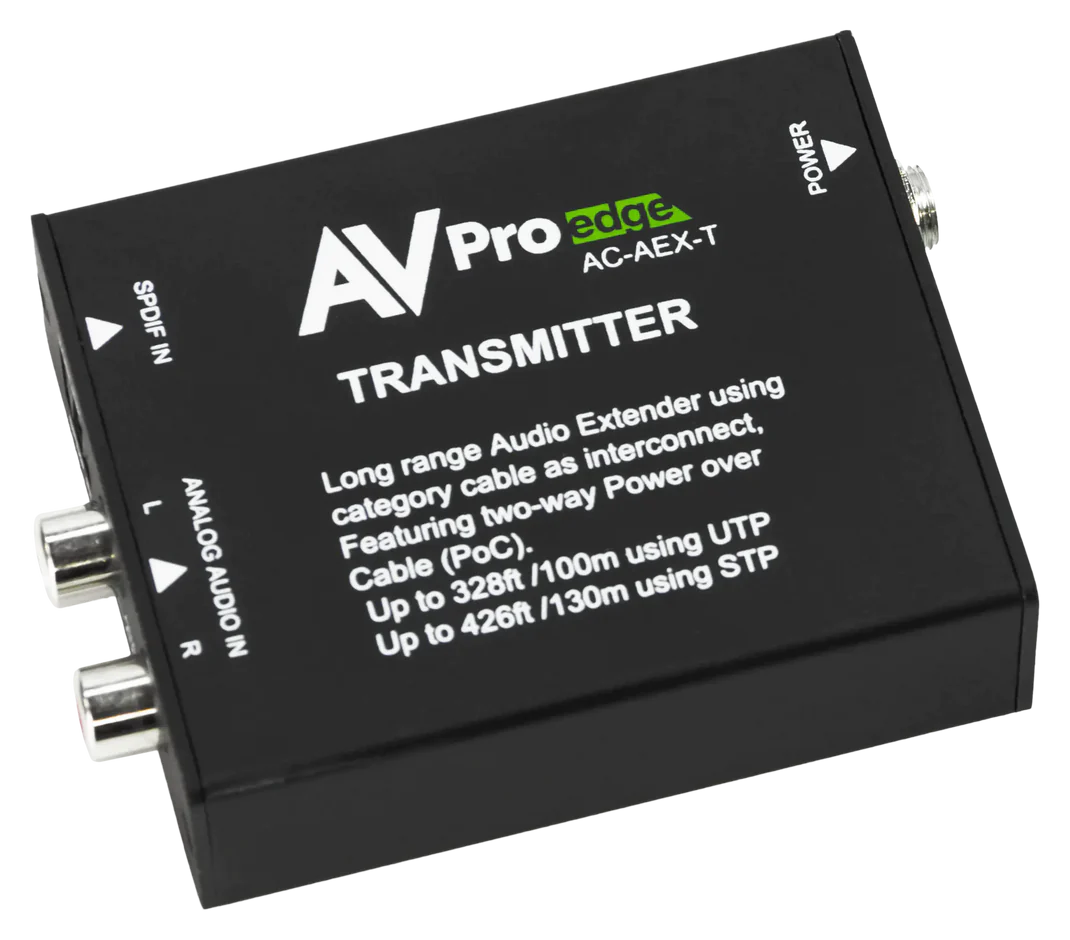

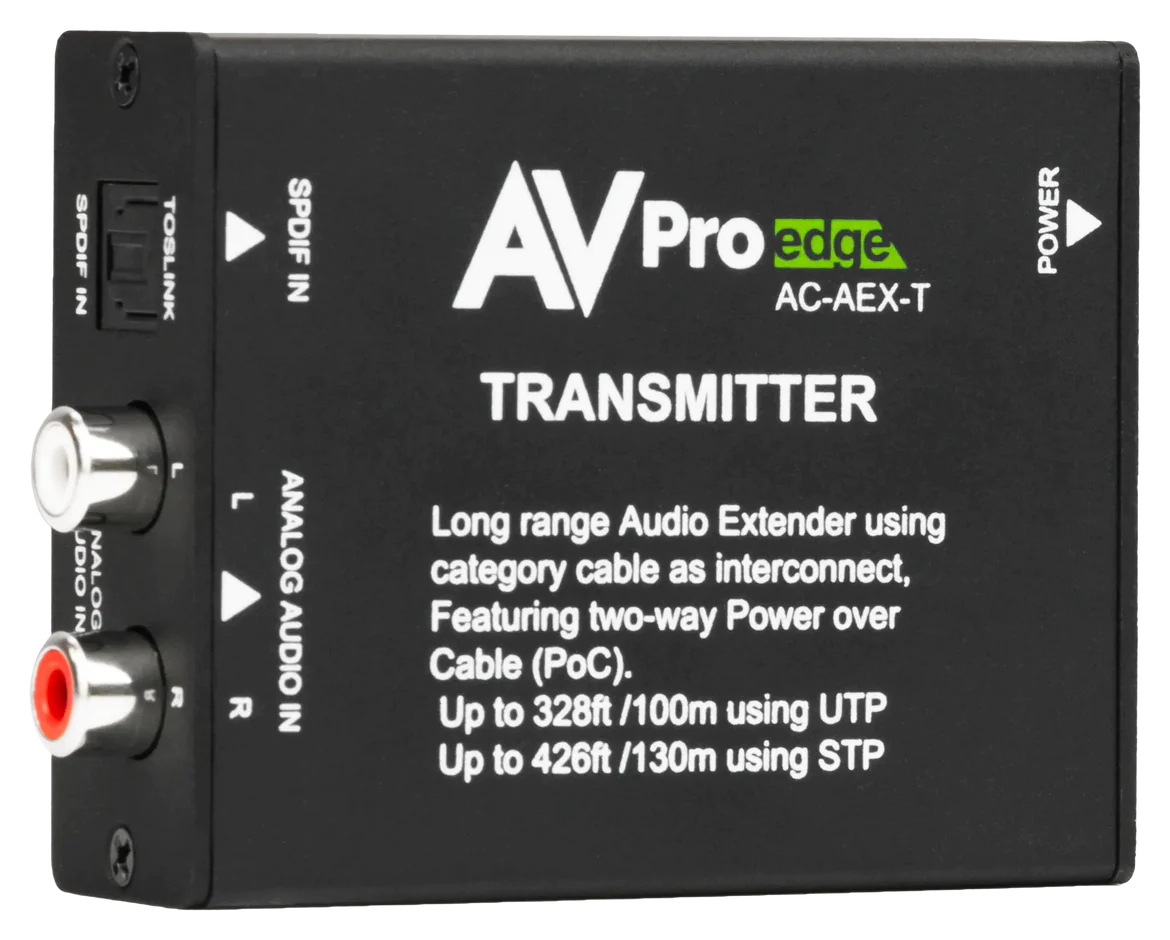

100M Uncompressed Audio Transmitter-AC-AEX-T
Product code: AC-AEX-T

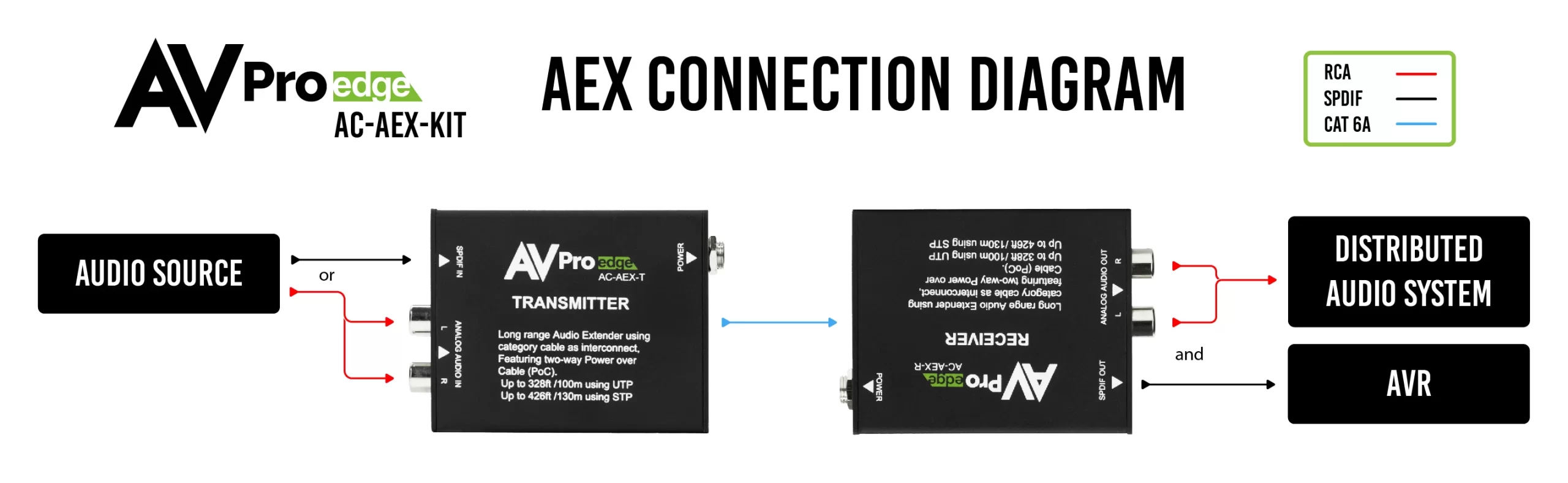

Engineered to deliver uncompressed audio 100 meters. Ideal for bringing SmartTV audio to a distributed system. SmartTV audio support from apps like Netflix, Spotify & Disney+. L/R & Optical digital audio S/PDIF signal support. Supports stereo and multi-channel digital audio (LPCM 2 CH through Dolby Digital or DTS 5.1 CH). SKU: AC-AEX-T
Technical Specifications
| Distance: | |
| UTP: unshielded twisted pair | 100 Meters (328 feet) |
| STP: shielded twisted pair | 130 Meters (426 Feet) |
| Ports: | |

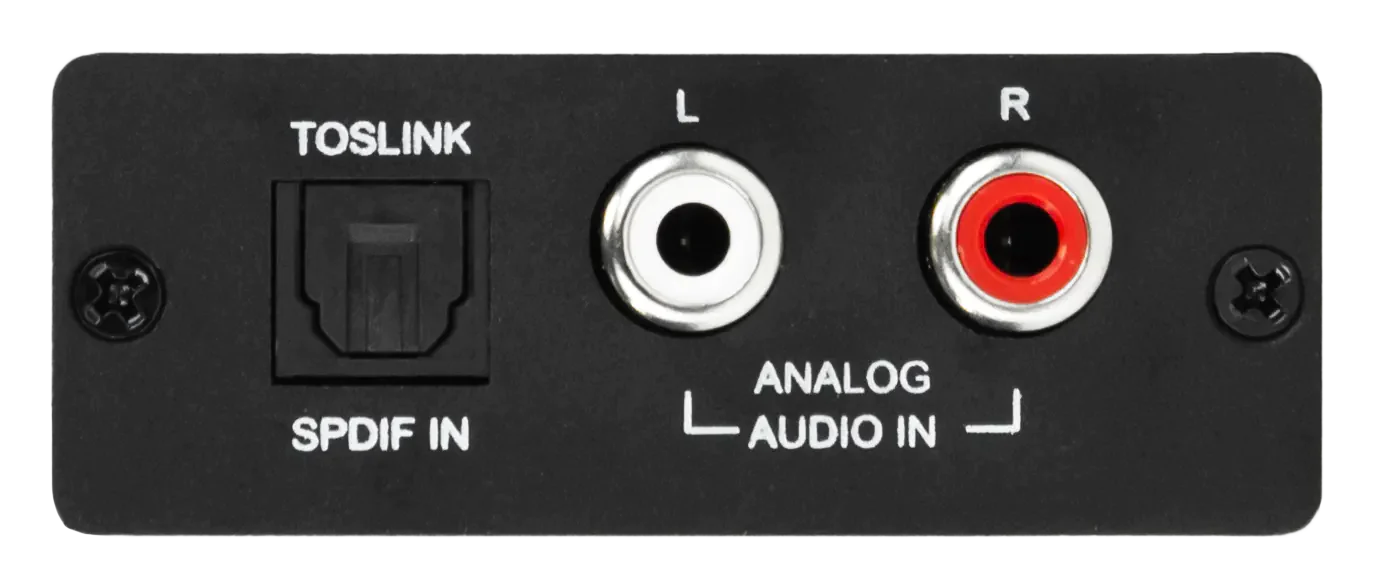

| Audio Inputs | 1x Optical, 1x Analog Stereo (L/R) |
| Power | Locking Barrell Plug |

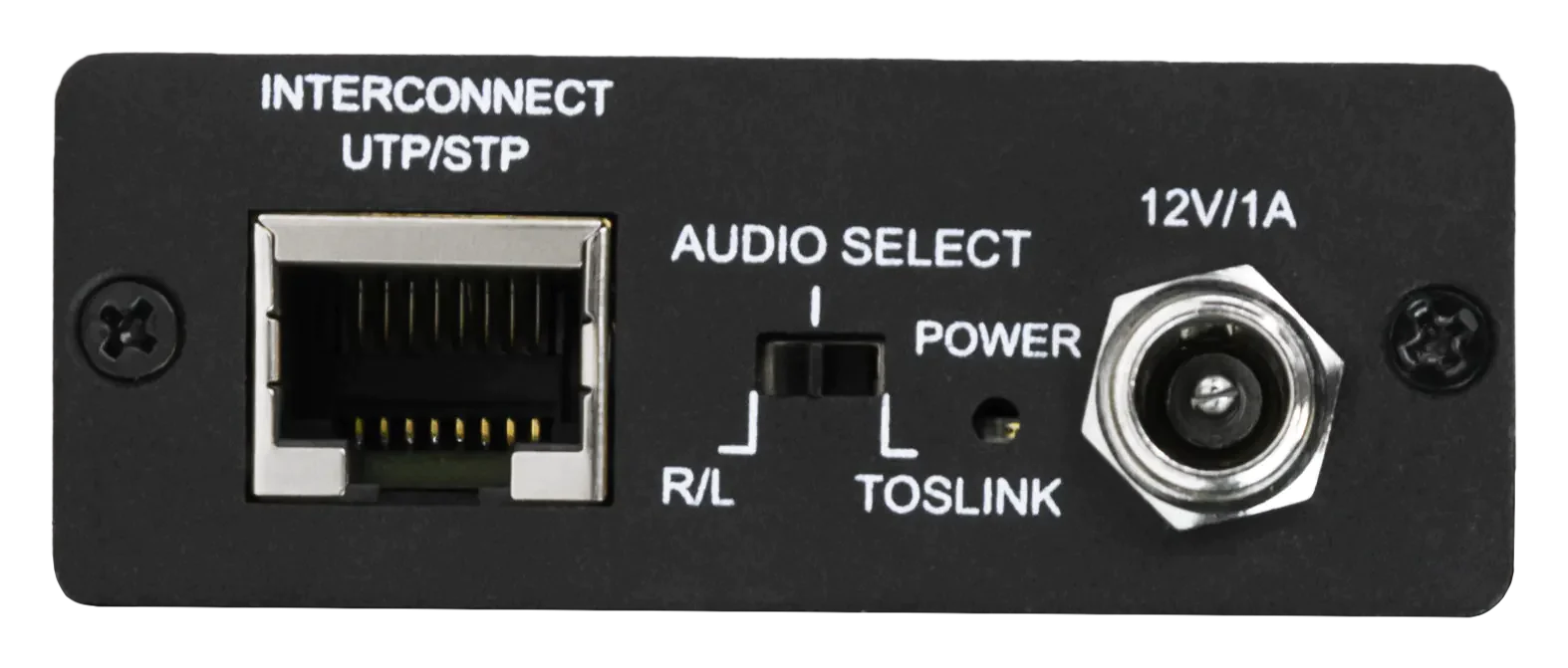

| Extension/Interconnect | RJ45 |
| Audio: | |
| Input Format | LPCM 2 CH & Dolby Digital/DTS Digital ES (Digital from Optical) |
| Input Sampling Rates | 32kHz ~ 96kHz |
| Input Impedance | 47KΩ |
| Output Impedance | 600Ω |
| Environmental: | |
| ESD Protection | Contact Discharge: +4kv-4kv Air Discharge: +4kv-4kv |
| Power: | |
| Power Consumption (Total) | 3 watts max |

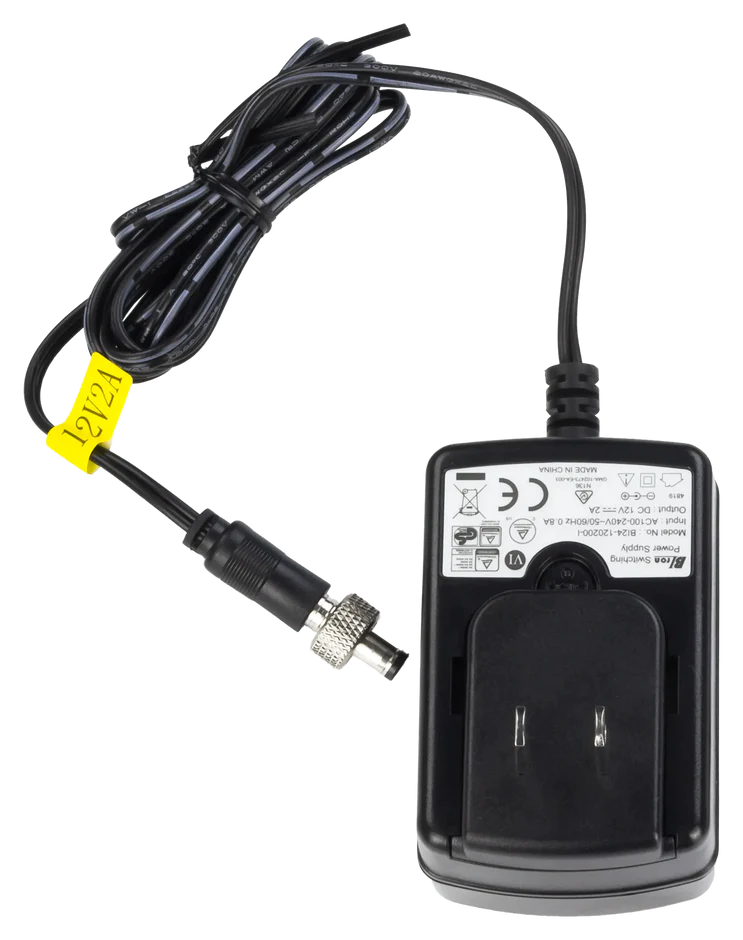

| Power Supply | Input: AC 100-240V ~ 50/60Hz 0.8A Output: DC 12V 2A |
| Dimensions: | |
| Dimensions (Single Unit Only HEIGHT/DEPTH/WIDTH) | MM: 22.3 x 58 x 82 INCH: 0.88 x 2.28 x 3.23 |
| Dimensions (Packaged HEIGHT/DEPTH/WIDTH) | MM: 86 x 133 x 155 INCH: 3.4 x 5.3 x 6.1 |
| Weight (Single Unit only) | 0.19 LBs (0.09 KG) |
| Weight (Packaged) | 0.89 LBS (0.4 KG) |
| \*Specifications subject to change without notice. Mass & dimensions are approximate |
Detailed Description
Engineered to deliver uncompressed audio 100 meters, ideal for bringing SmartTV audio to a distributed system. Supports SmartTV audio from apps like Netflix, Spotify & Disney+. L/R & Optical digital audio S/PDIF signal support. Supports stereo and multi-channel digital audio (LPCM 2 CH through Dolby Digital or DTS 5.1 CH). SKU: AC-AEX-T
